Brand:Elites
Model no:ET-A12
Product origin:China
Delivery time:2weeks-4 weeks

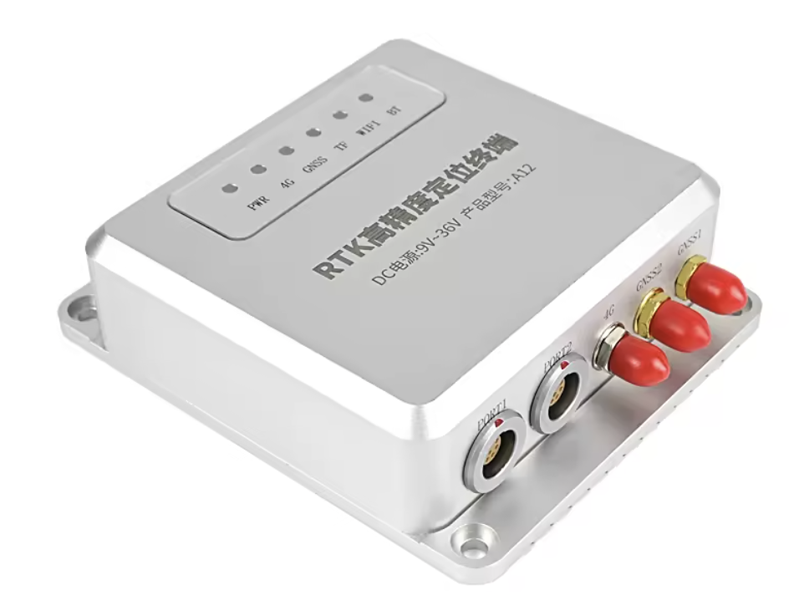

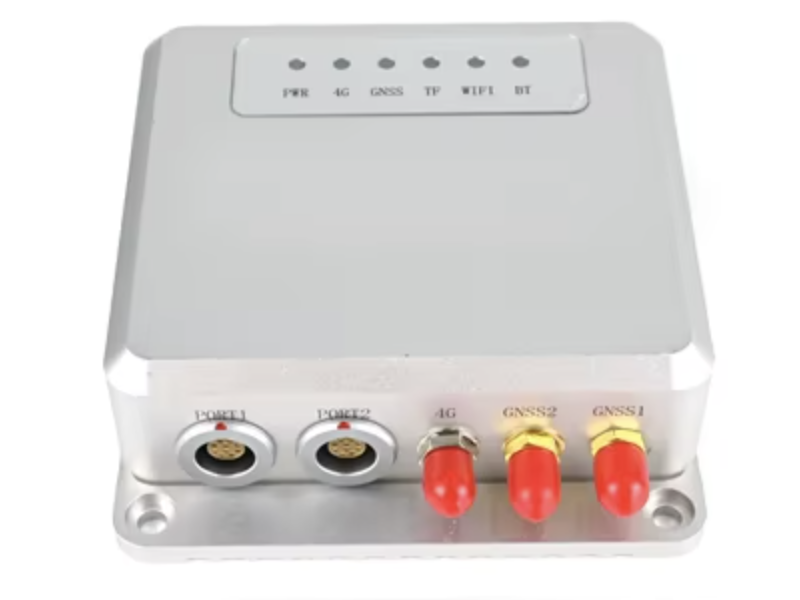

ET-A12R Dual-Antenna Precision Terminal is our self-developed GNSS solution offering centimeter-level accuracy for vehicles, vessels, and drones. This all-in-one system enables real-time tracking, fleet management, anti-theft alerts, and data analytics. Ideal for logistics, public transport, and marine applications, it's particularly suited for precision agriculture, autonomous vehicles.
Product Parameters
|
working voltage |
DC 9V ~ 36V |
|
working current |
<160mA (DC 12V ) |
|
working temperature |
–35 ℃ ~ +80 ℃ |
|
Working humidity |
5% ~ 80% |
|
standby battery |
350mA /3.7V |
|
Battery working time |
2h |
|
communication mode |
TCP |
|
communication network |
4G |
|
location mode |
Multi-constellation positioning |
|
Wi F i |
Support 2.4G (optional) |
|
PDA |
Support for BLE 4.2 (optional) |
|
classification of waterproof |
IP67 |
|
ESD grade |
Electrostatic discharge index (can withstand contact 4KV, air 8KV) |
|
vibration performance |
Meet the GB / T 28046.3-2011 requirements |
|
Impact prevention |
Gravity acceleration < = 3g |
|

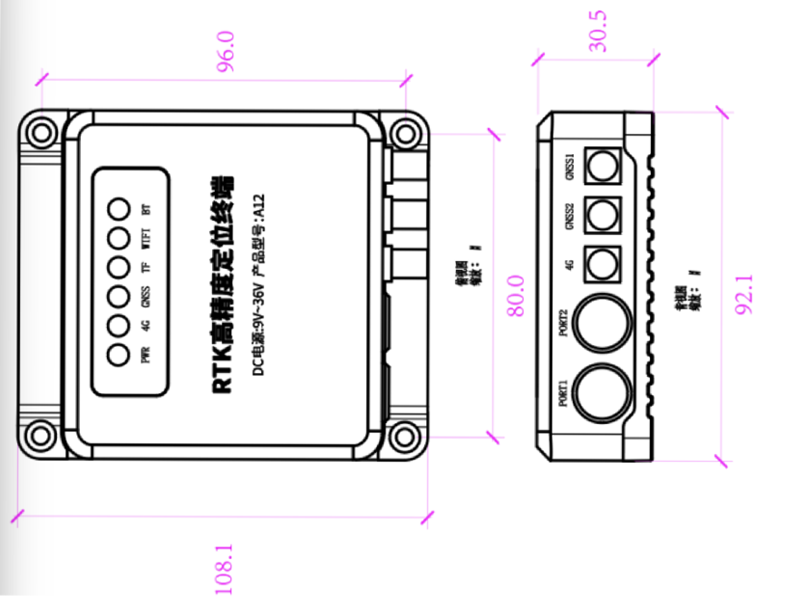

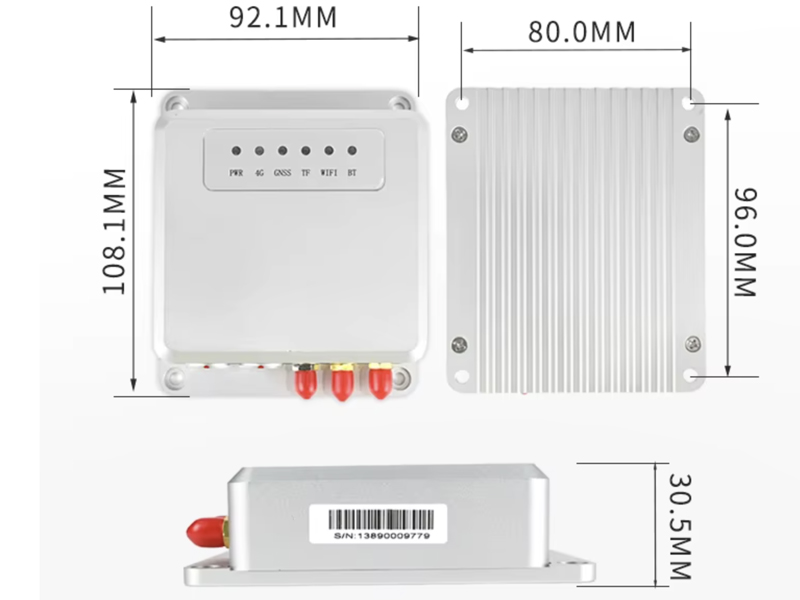

specification and dimension |
108*92*30.5mm |
|
Terminal weight |
270g |
|
working voltage |
DC 3.3V ~ 5.5V |
|
working current |
<240mA |
|
orientation accuracy |
0.2 ° / 1m baseline |
|
Time accuracy (RMS) |
20ns |
|
rate accuracy |
0m /s.2 |
|
Capture the tracking channel |
1408 |
|
Cold start time |
≤30s |
