Brand: elites
Origin: China
Delivery time:2weeks-4 weeks
Supply capacity:Mass production
Features:
① RTK Centimeter-Level Positioning
② Dual Antennas, Supports Heading Output
③ Ultra-Low Latency, Less Than 10 ms
④ Compact Size
⑤ Large Capacity Storage, Up to 32 GB
⑥ Excellent Dynamic Performance, Up to 100 Hz Update Rate
⑦ AIM+ Interference Monitoring and Suppression
⑧ IONO+ Ionospheric Scintillation Mitigation
⑨ Lock+ Superior Tracking, Anti-Vibration, and Anti-Shock Robustness
⑩ APME+ Multipath Mitigation Technology
⑪ RAIM+ Receiver Autonomous Integrity Monitoring
⑫ Supports OSNMA Anti-Spoofing
Specification
|
Item |
Parameter |
|
Satellites Supported |
GPS: L1C/A, L1C, L2C, L2P(Y), L5 |
|
Tracking Performance (C/N) Threshold |
Tracking & Navigation Sensitivity: 20 dB-Hz |
|
Time to First Fix |
Cold Start: <45s |
|
RTK Status (RMS) |
Horizontal Position Accuracy: 0.6 cm + 0.5 ppm |
|
Timing Accuracy |
XPPS Output: 5 ns |
|
Velocity Accuracy |
0.03 m/s |
|
Latency (99.9%) |
<10 ms |
|
GNSS Attitude Accuracy (RMS) |
1m Antenna Spacing: Heading 0.15°, Attitude 0.25° |
|
Position Accuracy (RMS) |
Horizontal | Vertical |
|
Limiting Conditions |
Dynamics: ≤4 g |
|
Baud Rate |
115200 - 4 Mbps (Default: 115200 bps) |
|
Maximum Update Rate |
Position: 100 Hz |
|
Product Name |
ET-GX10 |
|
Warranty |
12 months |
|
Place of Origin |
Guangdong, China |
|
MOQ |
1 Unit |
|

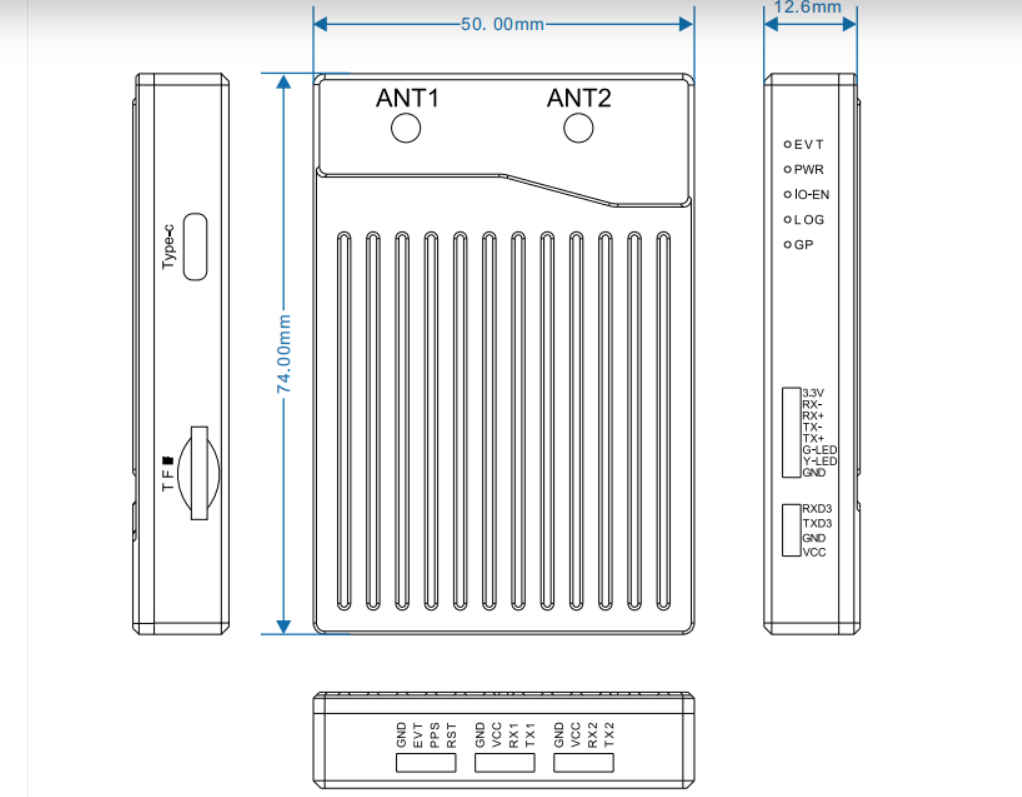

Size |
71.8*50.2*12.5mm±0.3mm |
|
Baud Rate |
115200- 4M bps (default 115200bps) |
|
Speed accuracy |
0.03m/s |
|
Latency (99.9%) |
<10ms |
|
Supported satellite navigation systems |
GPS, BDS, GLONASS, Galileo, QZSS and SBAS |
