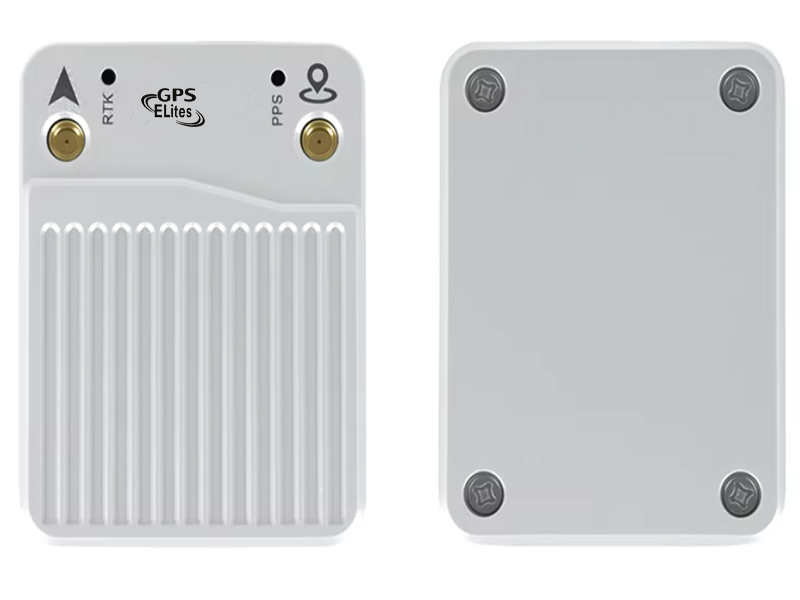

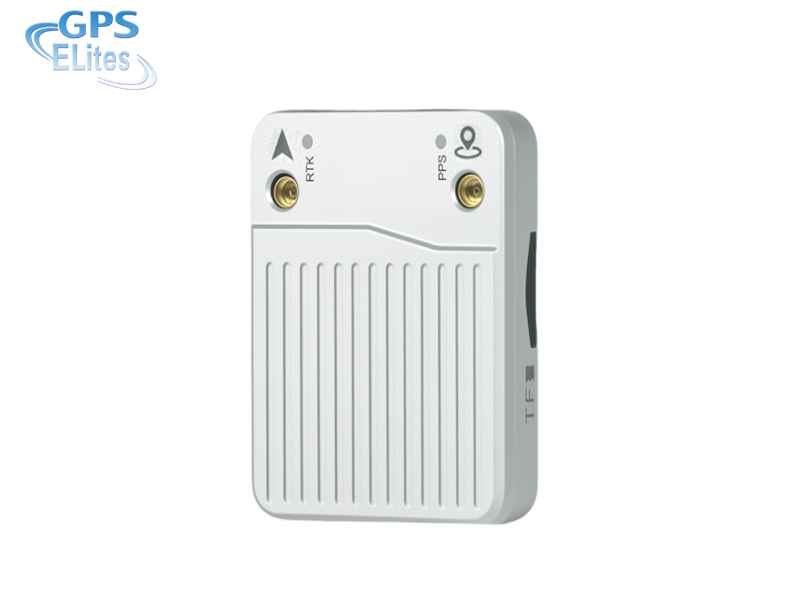

The GX43 is an advanced multi-band GNSS receiver delivering high-precision positioning with heading/pitch/roll measurements, ideal for autonomous navigation. Designed for UAVs, robotics, and autonomous vehicles, it features ultra-low predictable latency for precise control. Supporting all GNSS constellations and future signals, it excels in complex environments while maintaining compatibility with open-source autopilots. A performance leader in mass-market GNSS applications.

•Utilize high-performance chips
• All-viewpoint satellite tracking, multi-constellation, multi-frequency
• 789 hardware channels enabling simultaneous operations
• Navigation update rate up to 20Hz
• Ultra-low latency of less than 10 milliseconds
• Supports GPS, GLONASS, BDS, Galileo, QZSS, Navic, SBAS satellites
• Integrated TCXO, LNA, and a TF card slot supporting up to 32GB

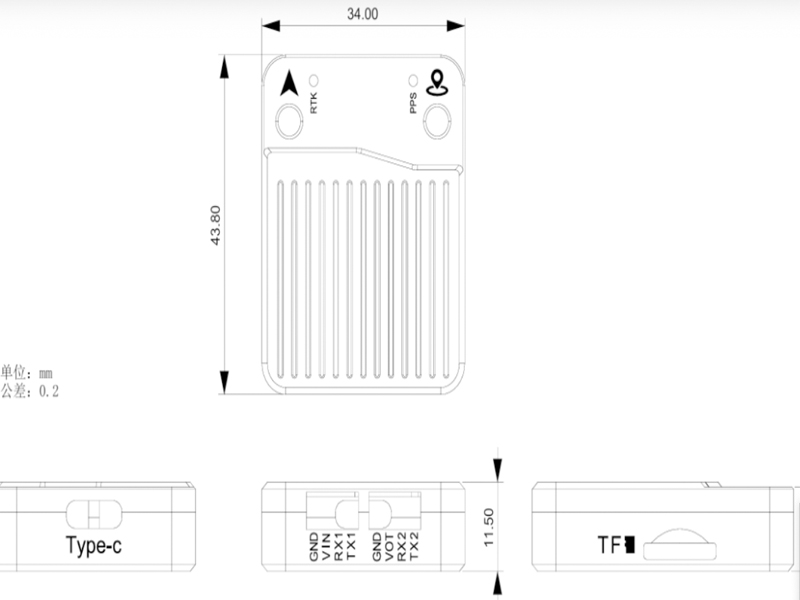

• Compact size (43.8*34.0*11.5mm ±0.2mm), weight <25g
• Supports standard NMEA 0183, SBF, RINEX, RTCM, CMR/CMR+
• AIM+ features advanced interference and spoofing detection with automatic mitigation
• LOCK+ offers robust tracking capabilities with excellent resistance to mechanical shock and vibration
• IONO+ provides advanced protection against ionospheric interference
• APME+ mitigates multipath effects by separating direct signals from those reflected by nearby structures
• Features interference indicators, interference mitigation, and spectrum measurement capabilities
• Supports ultra-short baseline heading output
• Supports GNSS navigation
• Supports Galileo OSNMA

Product Parameters
