Brand: elites
Origin: China
Delivery time:2weeks-4 weeks
Supply capacity:Mass production

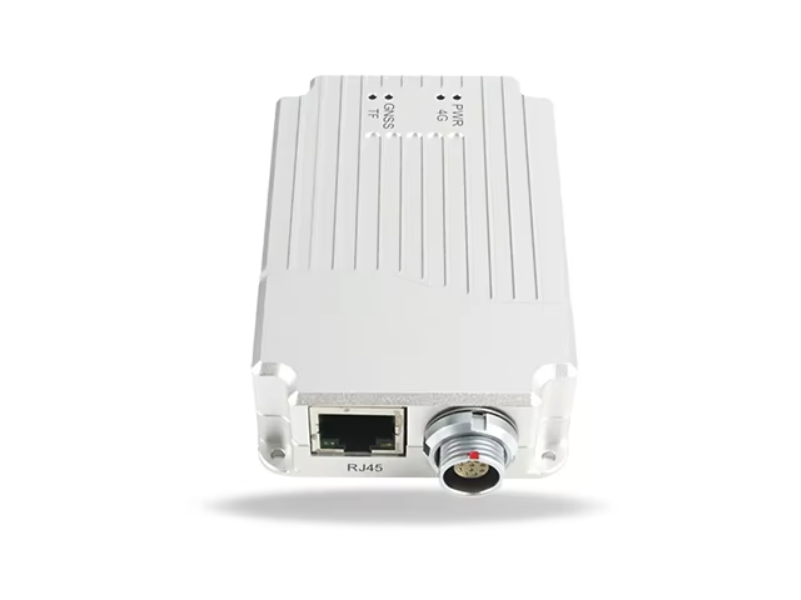

GA12K mini Dual-Antenna Precision Terminal is our self-developed GNSS solution offering centimeter-level accuracy for vehicles, vessels, and drones. This all-in-one system enables real-time tracking, fleet management, anti-theft alerts, and data analytics. Ideal for logistics, public transport, and marine applications, it's particularly suited for precision agriculture, autonomous vehicles.
Product Parameters
|
Operating voltage |
DC 9V ~ 36V |
|
Operating current |
150mA |
|
Operating Temperature |
–35 ℃ ～+80 ℃ |
|
Operating humidity |
5%～80% |
|
Communication method |
TCP |
|
Communication network |
4G |
|
Positioning method |
Dual frequency |
|
ESD rating |
Electrostatic discharge index (can withstand contact 4KV, air 8KV) |
|
Vibration performance |
Comply with the requirements of GB/T28046.3-2011 |
|
Impact resistance |
Gravitational acceleration < = 3g |
|

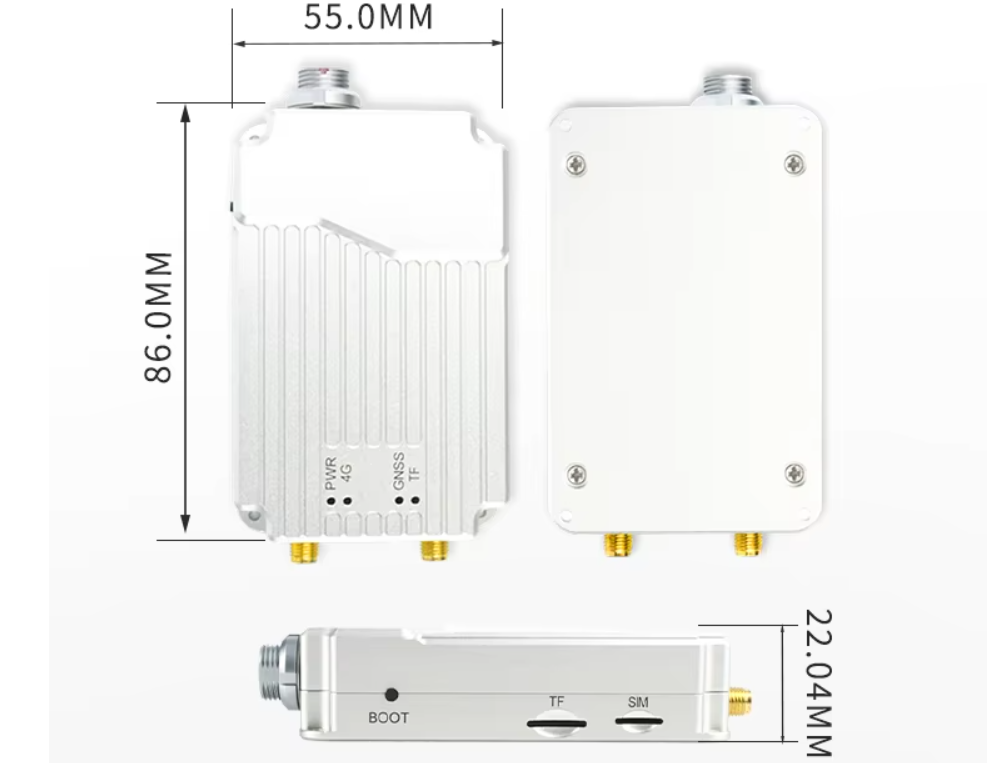

Specifications and dimensions |
86 * 55 * 22mm |
|
Terminal weight |
40g |
|
Capture channel |
156 satellite capture channels |
|
Receipt Type |
GPS/QZSS L1 L2 GLONASS G1 G2 |
|
Sensitivity |
Tracking sensitivity-163dBm |
|
|
Cold start ≤ 35s |
|
Horizontal positioning accuracy |
Single point solution 2.0 m CEP |
|
Velocity accuracy |
0.05 m/s |
|
Baud rate |
9600-230400bps (Default 115200 bps) |
|
Refresh Rate |
Up to 10 Hz (default 1Hz) |
|
Data format |
NMEA 0183 |
|
Differential data |
RTCM3.3/3.2/3.1/3.0 |
|
Operating voltage |
DC 3.3 V ~ 3.6 V |
|
Operating current |
< 130 mA |
