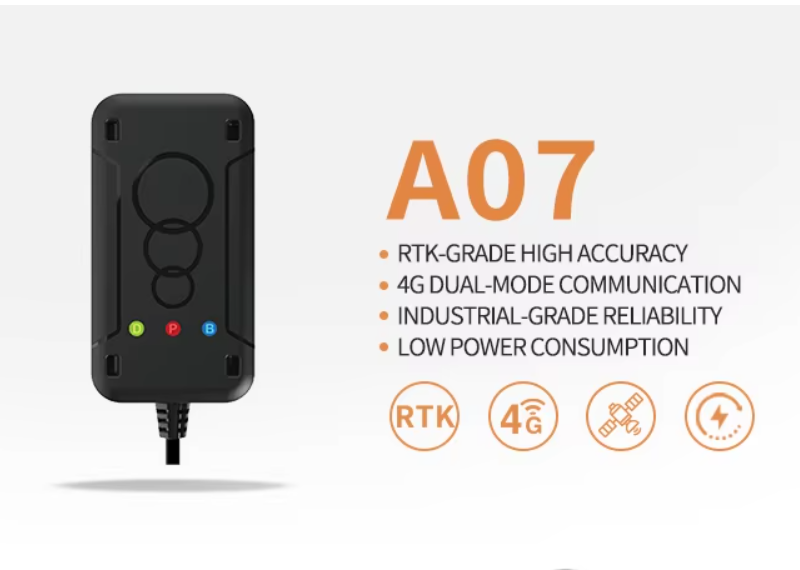

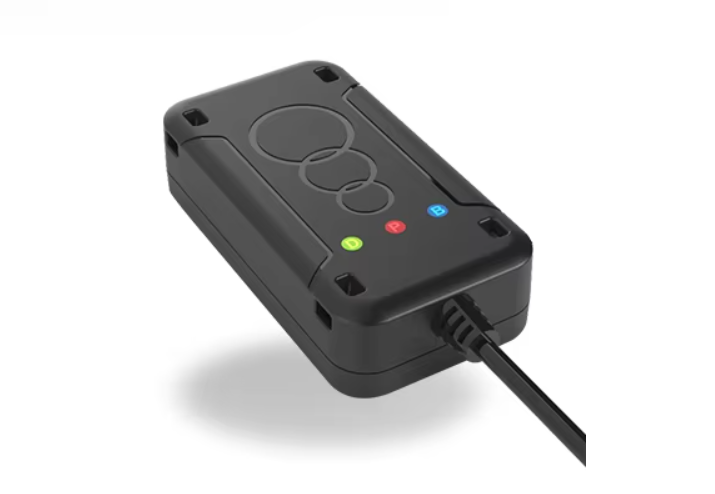

Professional Anti-Tamper RTK GPS tracker ET-GA07K
Brand: elites
Origin: China
Delivery time:2weeks-4 weeks
Supply capacity:Mass production
The GA07K is our next generation vehicle location terminal with integrated satellite tracking. This application service system combines real-time monitoring, track analysis, anti-theft alerts and fleet management. Ideal for a wide range of vehicles such as e-bikes, logistics trucks, rental cars and hazardous materials transport, it provides comprehensive location services for a wide range of industries
The GA07K is our next generation vehicle location terminal with integrated satellite tracking. This application service system combines real-time monitoring, track analysis, anti-theft alerts and fleet management. Ideal for a wide range of vehicles such as e-bikes, logistics trucks, rental cars and hazardous materials transport, it provides comprehensive location services for a wide range of industries
|
Constellation frequency band
|
GPS L1
QZSS L1
BDS B1L
SBAS L1
|
|
|
sensitivity
|
tracking sensitivity
|
-160dBm
|
|
acquisition sensitivity
|
-145dBm
|
|
|
positioning time
|
cold boot
|
≤32 s
|
|
Warm start
|
28s
|
|
|
warm boot
|
1 s
|
|
|
positioning accuracy
|
GNSS
|
2.5 m CEP
|
|
DGNSS
|
2.0 m CEP
|
|
|
RTK
|
2.5cm + 1ppm (horizontal)
|
|
|
1PPS
|
RMS
|
25ns
|
|
Speed accuracy
|
GPS/GPS+BDS
|
0.1 m/s
|
|
BDS
|
0.2m/s
|
|
|
Operating limits
|
accelerated speed
|
≤ 4 g
|
|
high altitude
|
18000 m
|
|
|
velocity
|
515 m/s
|
|
|
working voltage
|
DC3.4V～4.5V
|
|
|
peak point current
|
3A
|
|
|
working temperature
|
-40℃ ～ +85℃
|
|
|
Support band
|
GSM850/900/1800/1900MHz
|
|
|
pulse per second
|
1Hz
|
|
|
Baud rate
|
115200~230400bps (default 115200 bps)
|
|
|
Maximum refresh rate
|
1Hz
|
|
