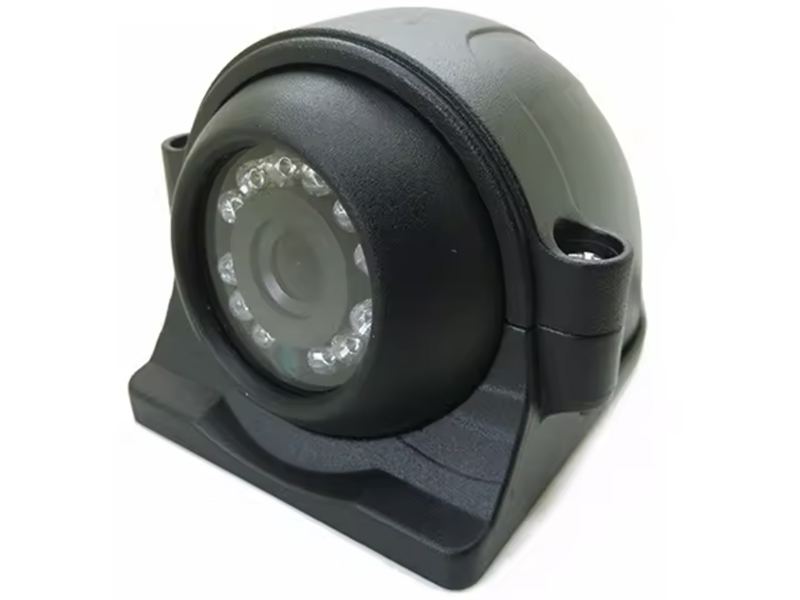

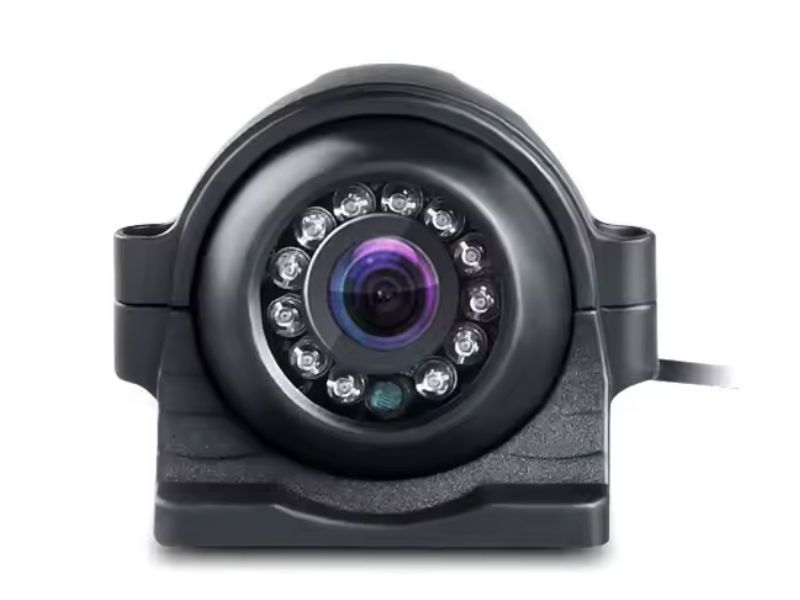

Brand:Elites
Model no:ET-BD01
Product origin:China
Delivery time:2weeks-4 weeks
Supply capacity:Mass production
Features:
*Working temperature:-20℃~+70℃

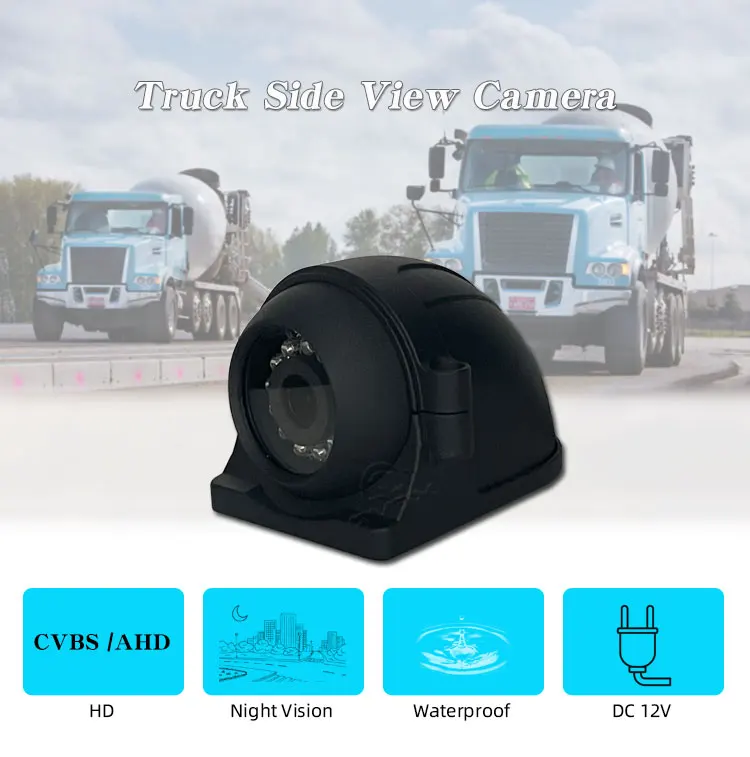

*AHD standard,CVBS optional
*Light sensor
*All-alloy material design,stainless screw

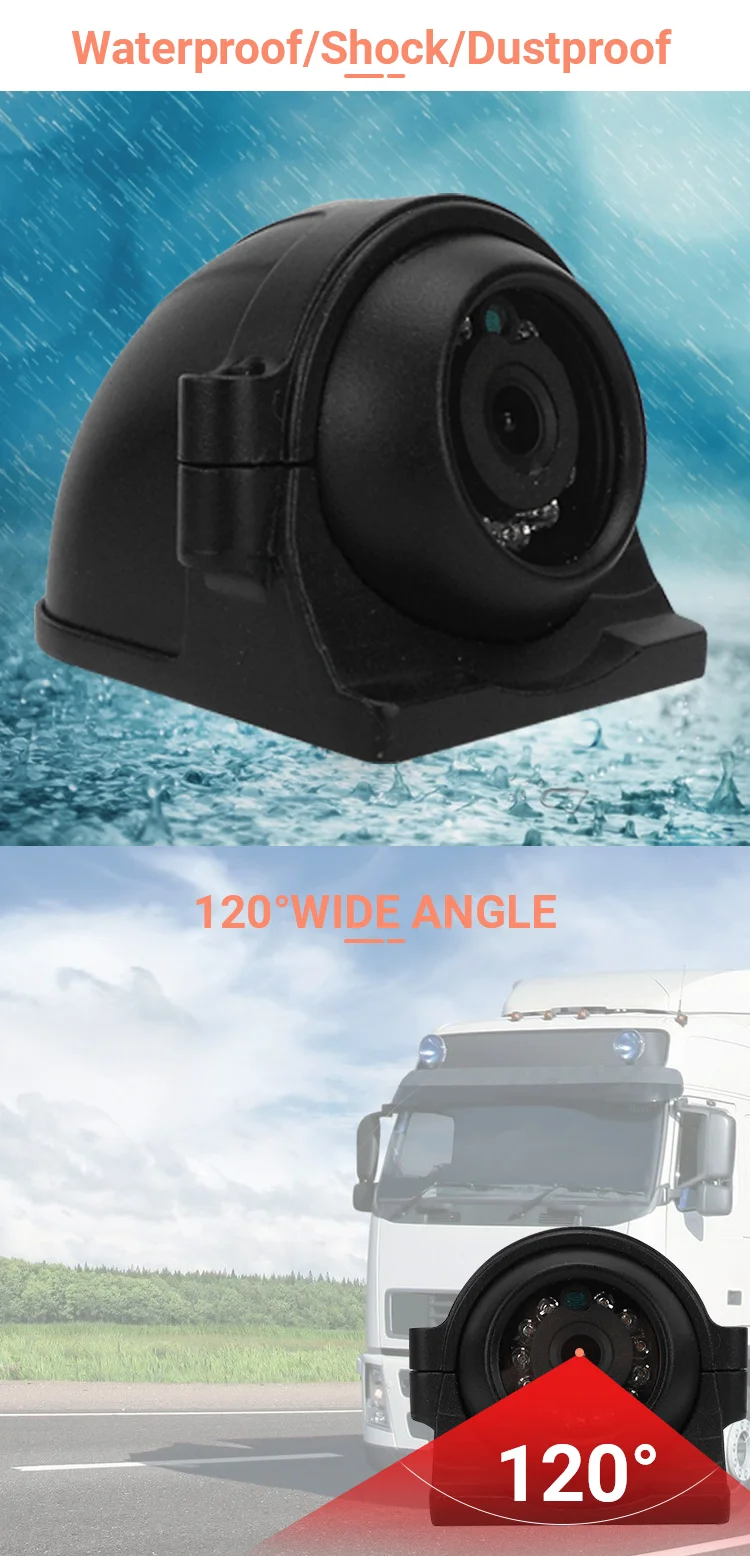

*Waterproof,Anti-seismic,Anti-interference
|
Model |
BD01 |
BD01 |
BD01-BSD |
|
DSP |
1million |
2million |
2million |
|
Image sensor |
1/4″CMOS |
1/3″CMOS |
1/3″CMOS |
|
Resolution |
720P/1.0MP 1280(H)*720(V) |
1080P/2.0MP 1920(H)*1080(V) |
1080P/2.0MP 1920(H)*1080(V) |
|
System |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
|
IR Led |
12pcs |
12pcs |
12pcs |
|
Video out |
AHD |
AHD |
AHD |
|
Auto Gain Control |
Auto |
Auto |
Auto |
|
White Balance |
Auto |
Auto |
Auto |
|
Electronic Shutter |
Auto |
Auto |
Auto |
|
Noise Redution |
3D |
3D |
3D |
|
Illumination |
0.01Lux/F1.2(IR Led On) |
0.01Lux/F1.2(IR Led On) |
0.01Lux/F1.2(IR Led On) |
|
Lens Mount |
M12 |
M12 |
M12 |
|
Lens |
2.8 mm |
2.8 mm |
3.6mm |
|

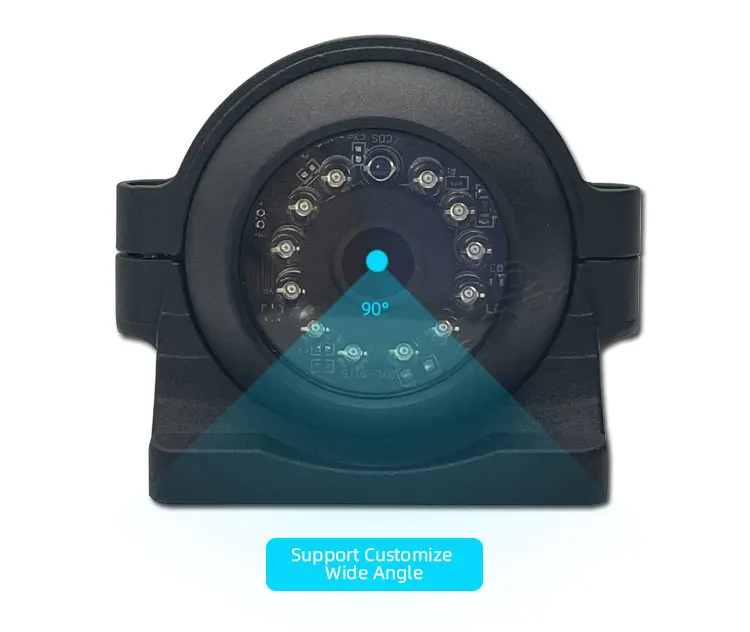

Field of View |
90° |
90° |
75° |
|
IR range |
15m |
15m |
15m |
|
Operating temperature |
-20℃~+70℃ |
-20℃~+70℃ |
-20℃~+70℃ |
|
Video Connector |
Aviation(or BNC) |
Aviation(or BNC) |
Aviation(or BNC) |
|
Power Supply |
DC 12V |
DC 12V |
DC 12V |
|
Water Proof |
IP67 |
IP67 |
IP67 |
|
Color/material |
black-metal |
black-metal |
black-metal |
|
Size(mm) |
89*77*63 |
89*77*63 |
89*77*63 |
|
Weight(g) |
0.27KG |
0.27KG |
0.27KG |
