Brand:Elites
Model no:ET-DS01
Product origin:China
Delivery time:2weeks-4 weeks

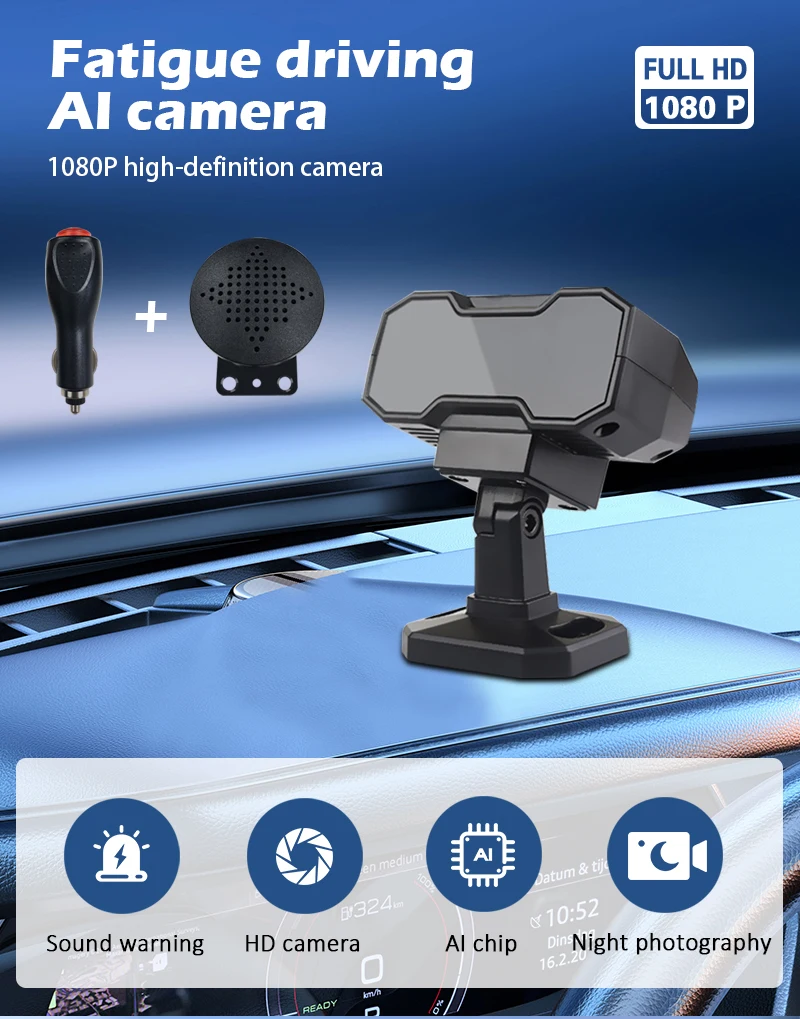

The DSM camera captures the driver's facial and body movements in real time, extracts feature points through the algorithm, and compares them with the pre-trained model to determine whether there are dangerous behaviors such as yawning, closing eyes, making phone calls, smoking, and distracted gaze.
Main functions:
|
Function |
Description |
|
Fatigue driving detection |
Identify behaviors such as frequent yawning, prolonged eye closure, and nodding to remind drivers to rest in time. |
|
Distracted driving detection |
Monitor whether the driver's line of sight deviates from the road, such as looking at mobile phones, central control screens, or passengers. |
|
Dangerous behavior detection |
Detect dangerous behaviors such as not wearing a seat belt, smoking, and making phone calls while driving. |
|
Driver identification |
Recognize the driver's identity through facial recognition to facilitate fleet management and attendance checking. |
|
Environmental adaptability |
Equipped with functions such as wide dynamic range (WDR), automatic white balance, and infrared night vision to ensure normal operation under complex lighting conditions. |
Specification:
|
Image Sensor:
|
1/3 CMOS
|
|
TV System:
|
720P PAL/NTSC (Option)
|
|
LENS:
|
2.8mm
|
|
View Angle:
|
80°
|
|
Sync System:
|
Internal
|
|
Signal to Noise Ratio:
|
≥48dB
|
|
AGC/White Balance/Backlight Compensation:
|
Auto
|
|
Shockproof：
|
10G
|
|

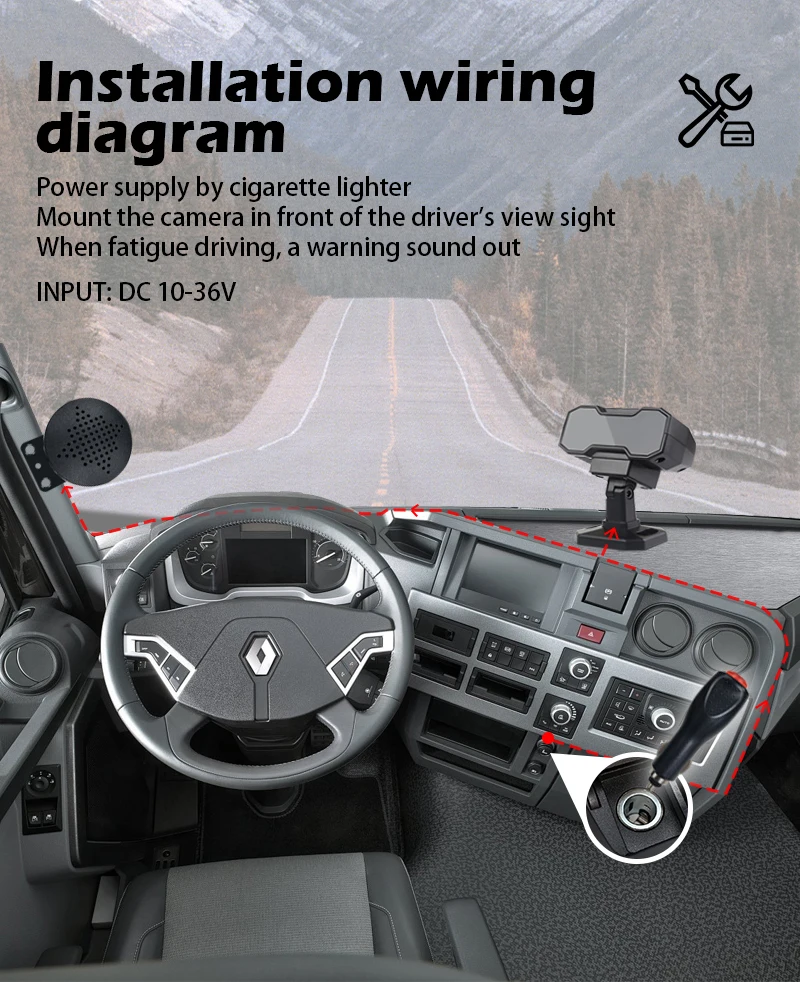

Power Supply:
|
DC12V
|
|
Current Drain：
|
75±5 MA
|
|
Mirror/Normal Image Adjustable：
|
Adjustable
|
|
Parking Line:
|
Triple Colors (Option),Adjustable
|
|
Electronic Shutter:
|
1/50-1/100000S,1/60-1/100000s
|
|
Image Frame Rate：
|
50/60fps--1/100000
|
|
Minimum Illumination:
|
0.001 Lux / F1.2
|
|
Operating Temperature:
|
–20℃ ~ 70℃,RH85% MAX
|
|
Storage Temperature:
|
–30℃ ~ 85℃,RH95% MAX
|
|
Video Output：
|
1.0V P-P/75Ω
|
|
Connector：
|
RCA or 4Pin (Option)
|
|
Net weight：
|
350g
|
|

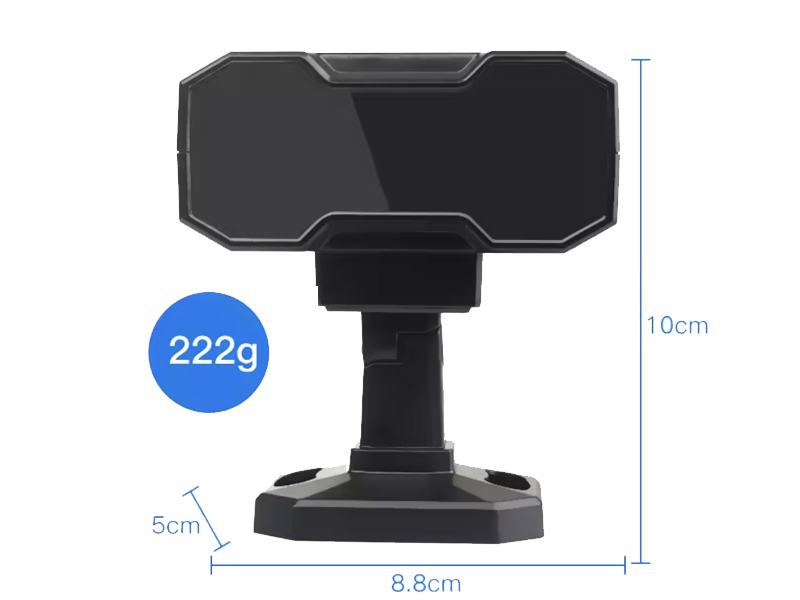

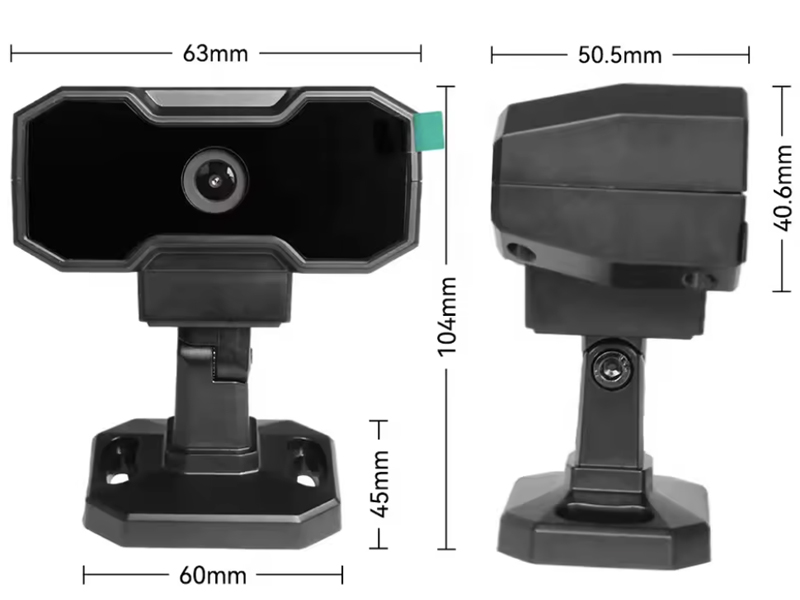

Product Size：
|
135*85*55mm
|
|
Product packaging：
|
Color box,135*85*55mm
|
|
Cover material：
|
Plastic
|
|
Microphone:
|
Optional
|
