Brand:Elites Model no:ET-CM05
Product origin:China
Delivery time:2weeks-4 weeks
This camera has high anti-explosion, waterproof and vandalproof quality, widely applied on oil tanker, fuel truck, gas truck and gas station, etc...
Main features:
1) Chip: 1/2.8" 3MP Progressive Scan CMOS, with a maximum resolution of 4MP real-time images
2) Adopting H.265 video compression technology, the compression ratio is high, which facilitates high-definition image transmission under slow speed network;
3) Supports variable bit rate and variable frame rate. While setting the video image quality, you can also limit the compression stream of the video image;
4) Built-in 5MP high-definition lens, focal length 1.7mm fisheye lens;
5) Support day and night (color & black and white) conversion, ICR automatic switching;
6) Use 2 high-power infrared lamps, with a maximum night vision distance of 15 meters;
7) Support human figure detection and alarm function;
8) Supports P2P one-click Internet access function, the most advanced gateway penetration function in China;
9) Supports browser and mobile phone remote monitoring, and remote access to cloud services is simple to operate;
10) Support PPPoE, DHCP, TCP/IP, HTTP, UDP, RTP/RTCP, RTSP, UPNP, SMTP, FTP, SIP, DDNS, DNS protocols;
11) Support heartbeat, mirroring, watermark and other functions;
12) Embedded Web Server, supports IE browser to view video, configure parameter settings, upgrade, and user authority management
13) Supports ONVIF and RTSP protocols to connect to NVR and management software.
model No.
ET-CM05
Camera specifications
Image sensor
1/2.8" Progressive Scan CMOS
Compression format
H.265/H.264
Main stream
4MP(2560*1440)/3MP(2304*1296)/2MP(1920*1080)/1MP(1280*720)
Sub-stream
448P(800*448)/D1(704*576)/360P(640*360 )/ CIF(352*288)
Frame rate
4MP/25 fps, 3MP/ 30fps
Min. Illumination
0.01Lux(color), F1.2; 0.0001Lux(black & white), F1.2;
Shutter speed
1/25s-1/10000s
Switch mode
Day/Night IR-CUT auto switch
Wide Dynamic
Digital Wide Dynamic
Watermark
Channel, date and time OSD watermark overlay
BLC
Supports
Signal-to-noise ratio S/N
≥40db
Optical lens
Connector type
M12 lens
Aperture
Fixed aperture: F1.8
lens
1.7mm
View angle
Vertical angle:130°, horizontal angle:170°
light
IR light
2 * LED IR light
IR wavelength
850nm
Night vision
15 meters
network
Network connector
1*RJ45, 10M/100M adaptive Ethernet network port (6pin aviation connector is optional)
Network protocols
HTTP,TCP,ONVIF,ARP,RTSP,UDP,RTCP,SMTP,DHCP,DNS,DDNS,PPPoE,
IPV4,UPnP,NTP
Client preview
Embed WEB Server, supports IE browser
Others
Operating temperature
-40℃-+70℃
humidity
0% - 90%
Power input
DC9-36V
Housing material
304 stainless steel
Protect rate
IP67
Power consumption
<2w (day time without IR), <4w (at night with IR on)

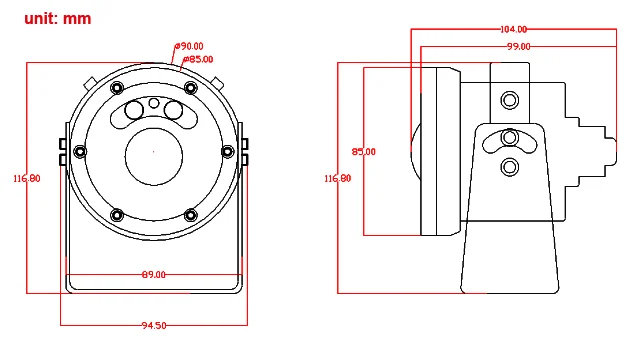

dimensions
104mm×94.5mm×117mm
Net wight
1.8KGs
