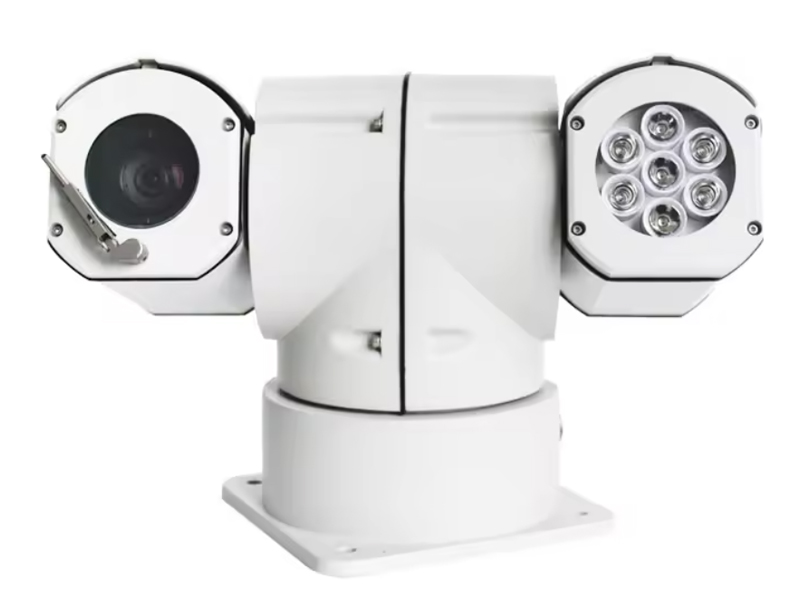

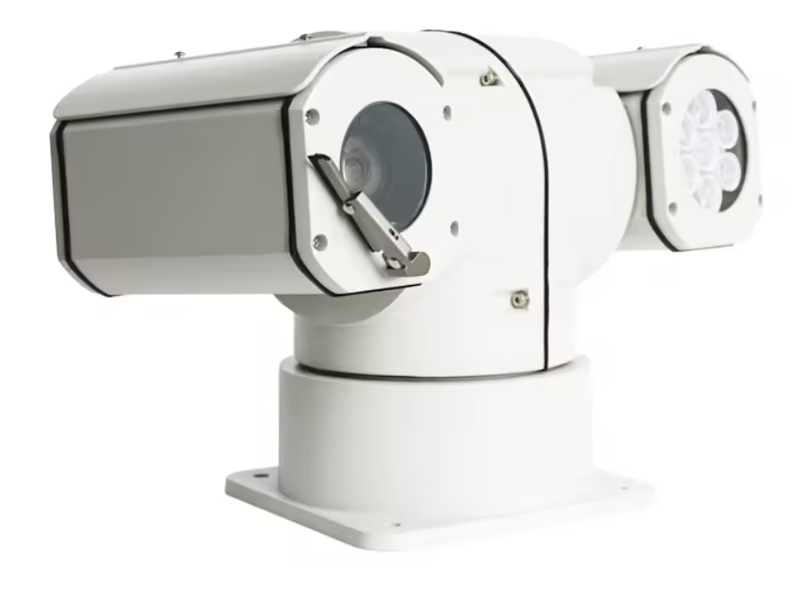

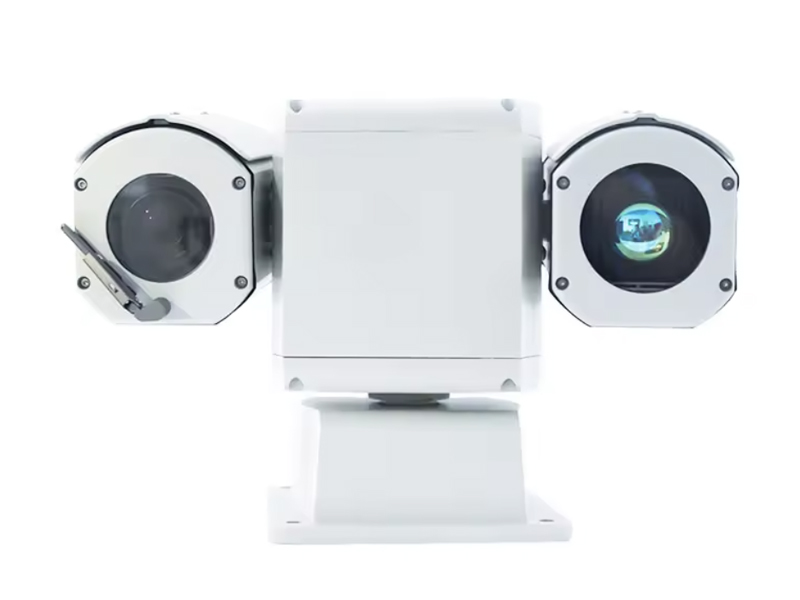

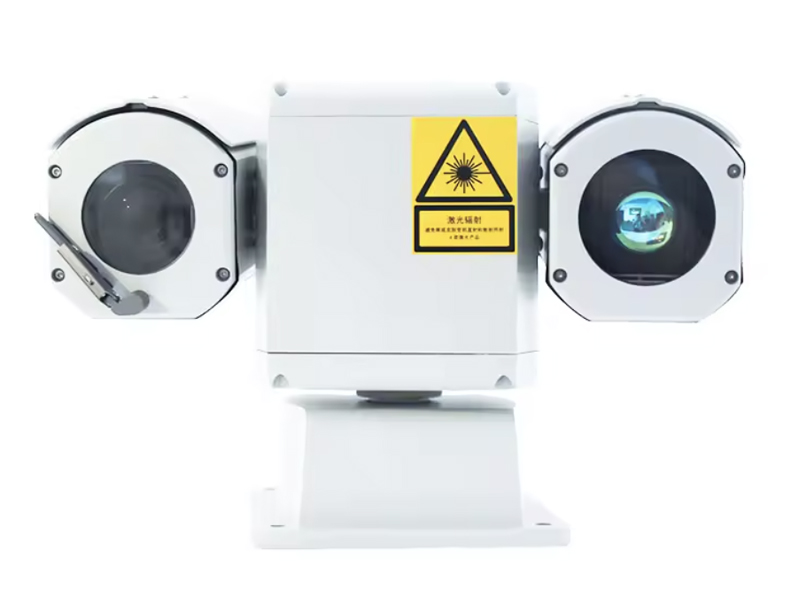

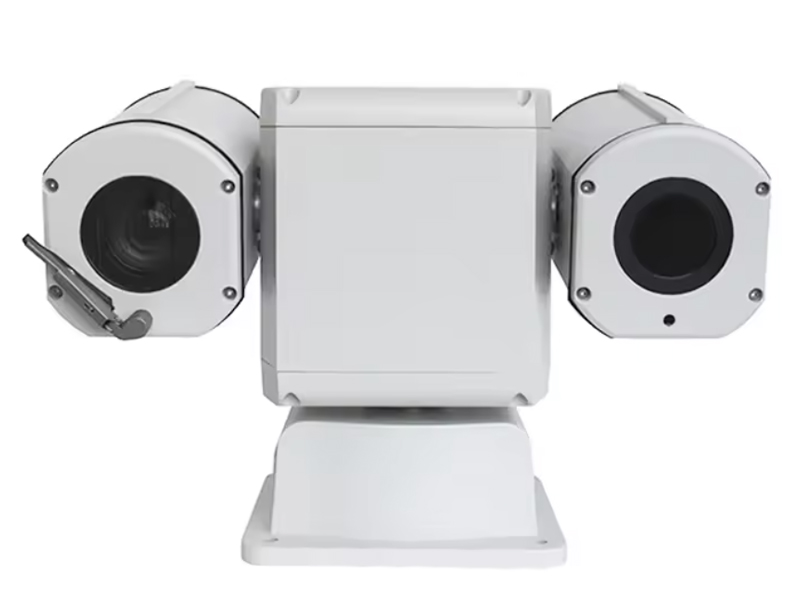

Vehicle-Mounted Thermal Imaging PTZ Camera with IP Network for Outdoor Applications ET-PTZ01
Brand:Elites
Model no:ET-PTZ01
Product origin:China
Delivery time:2weeks-4 weeks
Model ptz01 is an intelligent integrated product applied to vehicle monitoring and vehicle forensics, which can be selected to be equipped with thermal imaging module and visible light camera as one to achieve day and night dual use. Suitable for vehicle top-load installation, with the car hard disk recorder to provide users with high-definition, smooth, stable video image effect, can achieve high-definition image acquisition, PTZ control, zoom control and other operations. Can be widely used in police mobile law enforcement, traffic police patrol vehicles, fire emergency command, medical emergency command system, special vehicle mobile command observation, mobile communication command vehicle, but also suitable for maritime ship monitoring and other fields.
ptz01 is an intelligent integrated product applied to vehicle monitoring and vehicle forensics, which can be selected to be equipped with thermal imaging module and visible light camera as one to achieve day and night dual use. Suitable for vehicle top-load installation, with the car hard disk recorder to provide users with high-definition, smooth, stable video image effect, can achieve high-definition image acquisition, PTZ control, zoom control and other operations. Can be widely used in police mobile law enforcement, traffic police patrol vehicles, fire emergency command, medical emergency command system, special vehicle mobile command observation, mobile communication command vehicle, but also suitable for maritime ship monitoring and other fields.
Product Features
|
1
|
An independent defogging and defrosting module is used to truly solve the fog caused by the temperature difference in the outdoor environment
|
|||
|
2
|
The PTZ adopts the integrated structure of the upper and lower spindles, so that the PTZ camera compartment and the infrared compartment will not be jolted and dislocated
|
|||
|
3
|
PTZ standard with original voltage regulator module, filter the instantaneous unstable current of the vehicle, so that the PTZ maintain a stable state
|
|||
|
4
|
The whole system adopts 485 online upgrade, which is convenient to customize the upgrade and update of the PTZ program
|
|||
|
5
|
All-weather environment design, high-strength aluminum alloy casting shell, anti-impact, anti-corrosion, protection level up to IP66
|
|||
|
6
|
Shock-proof design, suitable for on-board installation environment
|
|||
|
7
|
Optional 4G wireless communication, remote viewing and other functions
|
|||
|
8
|
Can be customized according to the needs, independent selection of thermal imaging module, visible light camera module
|
|||
Product Paramenters
|
Modle
|
MTP32x4.7A6-C2
|
MTP35x6A6-C2
|
MTP42x7A6-C2
|
|
|
Visible light sensor
|
Sensor type
|
1/3 "progressive scan CMOS sensor
|
1/1.8"progressive scan CMOS sensor
|
1/2.8″progressive scan CMOS sensor
|
|
focal length
|
4.7～150mm
|
6～210mm
|
7～300mm
|
|
|
Zoom ratio
|
32x
|
35x
|
42x
|
|
|
Pixels
|
4 million
|
4 million
|
2 million
|
|
|
Resolution
|
2688x1520@30fps
|
2688x1520@30fps
|
1920*1080@25fps/30fps
|
|
|
Aperture range
|
59.5°～2.0°(Wide Angle - Wide view)
|
61°～2.0°(Wide Angle - Wide view)
|
59°～1.5°(Wide Angle - Wide view)
|
|
|
Day-night mode
|
ICR infrared filter type
|
|||
|
Autofocus
|
Auto focus/One focus/manual focus
|
|||
|
Video format
|
H.265 / H.264/MJPEG
|
|||
|
Thermal imaging module
|
Sensor type
|
Vanadium oxide infrared microbolometer
|
||
|
focal length
|
50mm (Max focal length 50mm supported, backward compatible)
|
|||
|
Resolution/pixel spacing
|
640x512/17μm
|
|||
|
sensitivity
|
||||
|
Frame rate
|
25HZ
|
|||
|
response wave band
|
8～14μm
|
|||
|
focus
|
Electric/manual
|
|||
|
PTZ performance
|
Horizontal range
|
360°
|
||
|
Horizontal velocity
|
0.1～80°/S
|
|||
|
Vertical range
|
-90°～90°
|
|||
|
Vertical velocity
|
0.1～60°/S
|
|||
|
Preset position
|
255 preset bits
|
|||
|
Automatic cruise
|
Supports 6 cruise tracks
|
|||
|
Communication baud rate
|
2400/4800/9600/19200bps
|
|||
|
Impact resistance
|
≥4G
|
|||
|
Windscreen wiper
|
Support (optional)
|
|||
|
General norm
|
power supply
|
AC24V±10% / DC12V
|
||
|
Power dissipation
|
≤60W
|
|||
|
operation temperature
|
-35℃～+60℃
|
|||
|
Working humidity
|
0～90%(No condensation)
|
|||
|

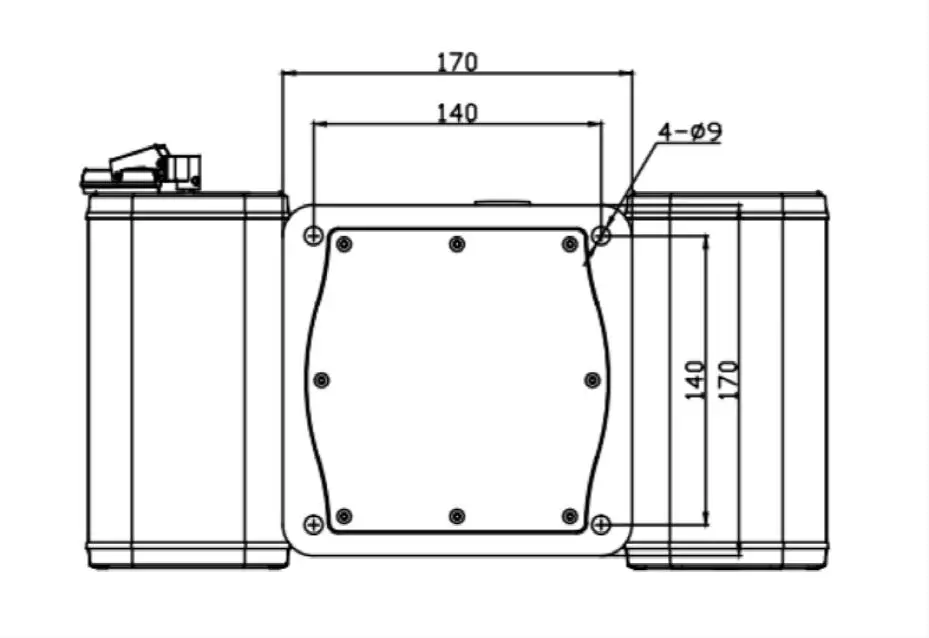

Installation method
|
Installation of magnetic suction cups or brackets
|
|||
|
Weight (KG)
|
7
|
|||
|
Standard fittings
|
Interface tail wire, power adapter
|
|||
|
Optional accessories
|
3D joystick keyboard, car monitor, shock absorber
|
|||
|
protection grade
|
IP67
|
|||
