Brand:Elites
Model no:ET-CM02
Product origin:China
Delivery time:2weeks-4 weeks
Supply capacity:Mass production
1. Specially designed for large vehicles, suitable for long-term work.
2. Suitable for multi-purpose environments, waterproof, anti fog, shock resistant, anti-interference, and high temperature resistant.
3. Adopting automotive grade ultra high definition CVBS/720P/960P/1080P-AHD starlight chips (A-class chips), 3D noise reduction, clear and high image quality, fast dynamic video response, no trailing or residual images, realistic and bright colors, and fast photosensitive recovery.
4. Adopting high brightness, high-definition, and wide-angle dedicated lenses, with optional viewing angles of 120 degrees/140 degrees/160 degrees, long-term operation will not cause blurring or other issues.
5. Exclusive private model: professionally designed with beautiful appearance, high grade, bright spray paint, and reasonable waterproof and shockproof design.
6. Equipped with curved glass protection design, it can achieve large angles without the need for adhesive coated cameras. Due to the exposed lens, it may scratch the lens and cause blurring after working for a period of time.
7. Waterproof technology for submersible pumps Ensure a deep IP68 waterproof rating.
8. Adjustable positive/mirror image (optional)
9. Low temperature automatic heating (optional)
Specification:
|
Specification |
|
|
Model |
CM02 (Audio Optional) |
|
DSP |
XM330 |
|
Image sensor |
1/3″CMOS 345 |
|
Resolution |
720P/1.0MP 1280(H)*720(V) |
|
System |
PAL/NTSC |
|
IR Led |
12pcs |
|
Video out |
AHD |
|
Auto Gain Control |
Auto |
|
White Balance |
Auto |
|
Electronic Shutter |
Auto |
|
Noise Redution |
3D |
|
Illumination |
0.01Lux/F1.2（IR Led On） |
|
Lens Mount |
M12 |
|
Lens |
2.8mm（optional 3.6mm or 4mm） |
|
Field of View |
90° |
|
IR range |
15m |
|
Operating temperature |
-20℃～+60℃ |
|
Video Connector |
Aviation（or BNC) |
|
Power Supply |
DC 12V |
|
Water Proof |
IP65 |
|
Antishock |
6.8G/10G |
|
Color/material |
white-metal |
|

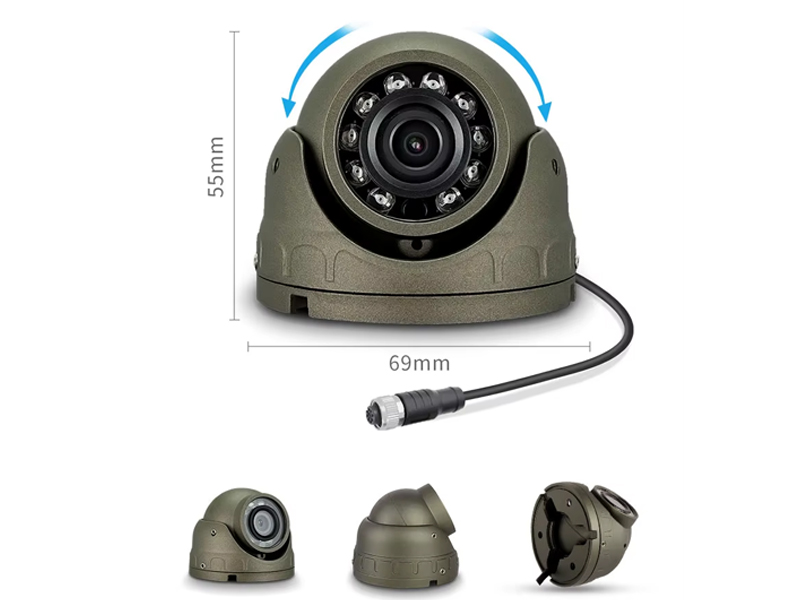

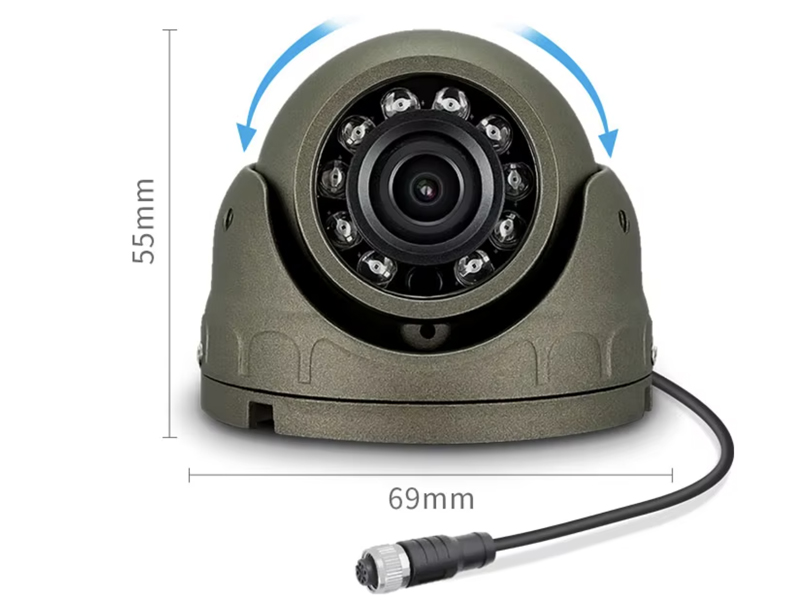

Size(mm) |
69*69*55 |
|
Weight(g) |
0.16KG |
|
|
|
|
Model |
M-AHD-335R-D (Audio Optional) |
|
DSP |
8536H |
|
Image sensor |
1/2.8″CMOS F23 |
|
Resolution |
1080P/2.0MP 1920(H)*1080(V) |
|
System |
PAL/NTSC |
|
IR Led |
12pcs |
|
Video out |
AHD |
|
Auto Gain Control |
Auto |
|
White Balance |
Auto |
|
Electronic Shutter |
Auto |
|
Noise Redution |
3D |
|
Illumination |
0.01Lux/F1.2（IR Led On） |
|
Lens Mount |
M12 |
|
Lens |
2.8mm（optional 3.6mm or 4mm） |
|
Field of View |
90° |
|
IR range |
15m |
|
Operating temperature |
-20℃～+70℃ |
|
Video Connector |
Aviation（or BNC) |
|
Power Supply |
DC 12V |
|
Water Proof |
IP65 |
|
Antishock |
6.8G/10G |
|
Color/material |
white-metal |
|
Size(mm) |
69*69*55 |
|
Weight(g) |
0.16KG |
