Brand:Elites
Model no:ET-GT06A
Product origin:China
Delivery time:2weeks-4 weeks
G06a is a GPS Tracker working based on 4G/GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets with built-in antennas by SMS or GPRS.With its compact design, the device can easily connect with car battery to acquire real time data, such as car position, ignition status, speed data, also can remotely disable the engine to stop car for anti-theft purpose and trigger SOS alarm via pressing button. And all these information will be upload via GPRS to server for furtheranalysis, statistics, storage and more extensive application.

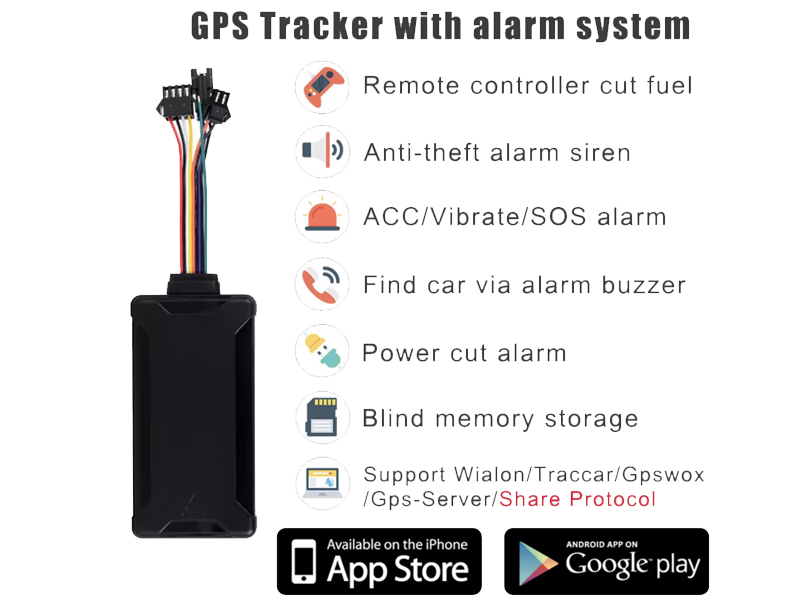

Production Features：

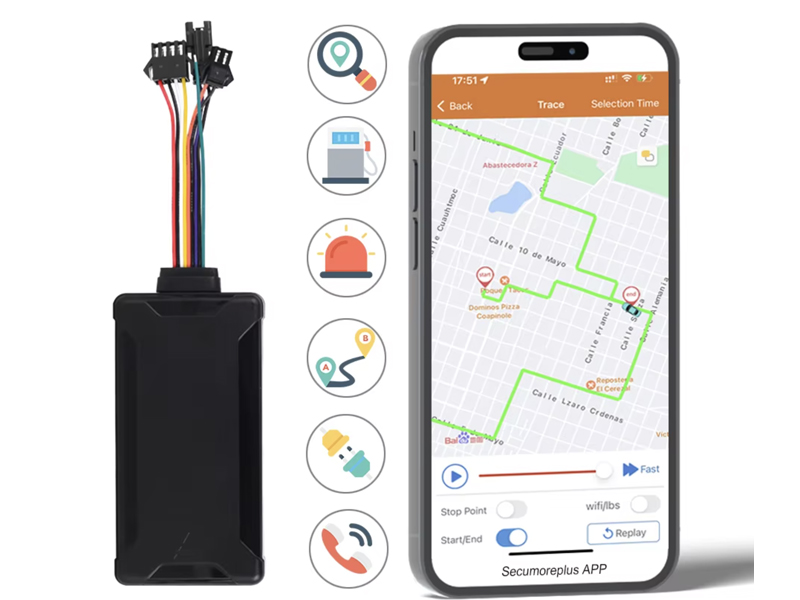

* Positioning and Tracking: Through the on-line Platform or the APP to locates at times, and get working status.
* Remote Controlling oil and circuit: you can control the oil and circuit via the unit by SMS in anywhere and anytime.
* Power cut-off Alert: When the device removed from car battery, the unit will send the power cut-off alert to authorized
numbers.
* Overspeed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is overspeed, the unit will send the overspeed alert to authorized numbers.
* Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to
authorized numbers when it breaches the district.
* Resume the unit: send SMS to resume the default of unit.
* ACC statuc checking; ACC on alarm, cutting off power alarm.
* Press SOS button to trigger the emergency alarm to APP and server in urgent case.
|
Content
|
Specs.
|
|
Dim.
|
85*45*17mm
|
|
Network
|
GSM/GPRS or LTE 4G
|
|
Frequency
|
GSM :850/900/1800/1900Mhz
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD B34/B38/B39/B40/B41
|
|
Module & Chipset
|
4G with SIMCOM7670
2G with MTK high sensitivity chips
|
|
GPS channel
|
66
|
|
Tracking sensitivity
|
-165dBm
|
|
Location accuracy
|
<5 meters CEP
|
|
Time To First Fix(open sky)
|
Cold status <35s
Hot status <1s |
|
Working voltage
|
9-90VDC
|
|
GPRS Protocol
|
Class12, TCP/IP
|
|
Operating temp.
|
-20°C to +70°C
|
|
Back up battery
|
150mAh /3.7V Li-Polymer battery
|
|
Working consumption
|
50mA
|
|
GSM / GPS antenna
|
Built-in
|
|
G-Sensor
|
Support
|
|
Ignition status detection
|
Support
|
|
Configuration Mode
|
PC – USB/GPRS /SMS
|
