Brand:Elites
Model no:ET-GT108
Product origin:China
Delivery time:2weeks-4 weeks
Supply capacity:Mass production
Product Description

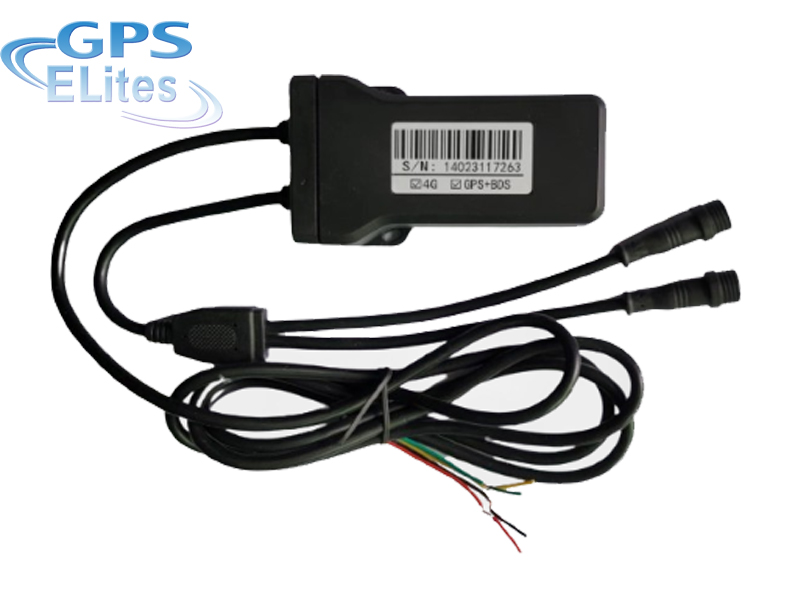

Elites Advanced GPS Tracker GT108 Multi functions:
Hardware Features:
1 Quad band GSM/GPRS 850/900/1800/1900 MHz. 4G version available
2 High Performance Internal Antennas
3 Digital Inputs (ignition)
4 Digital Output (Engine immobilization)

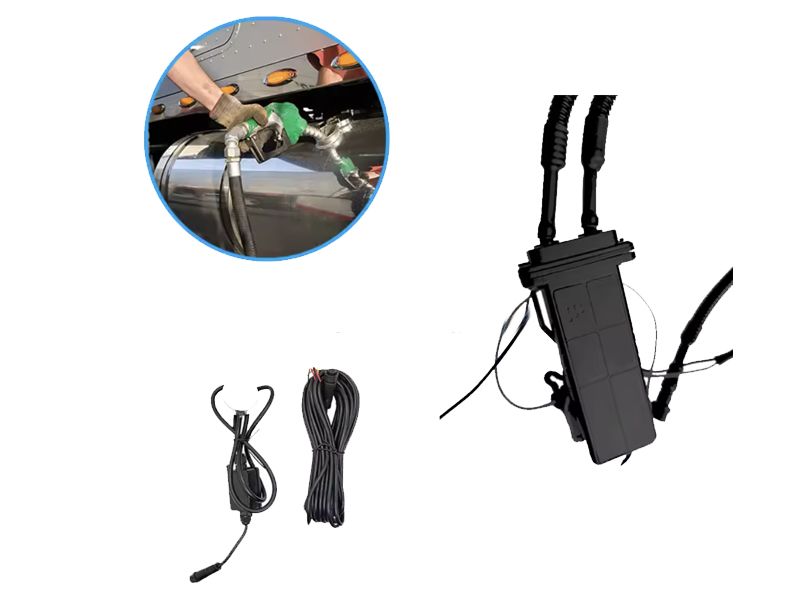

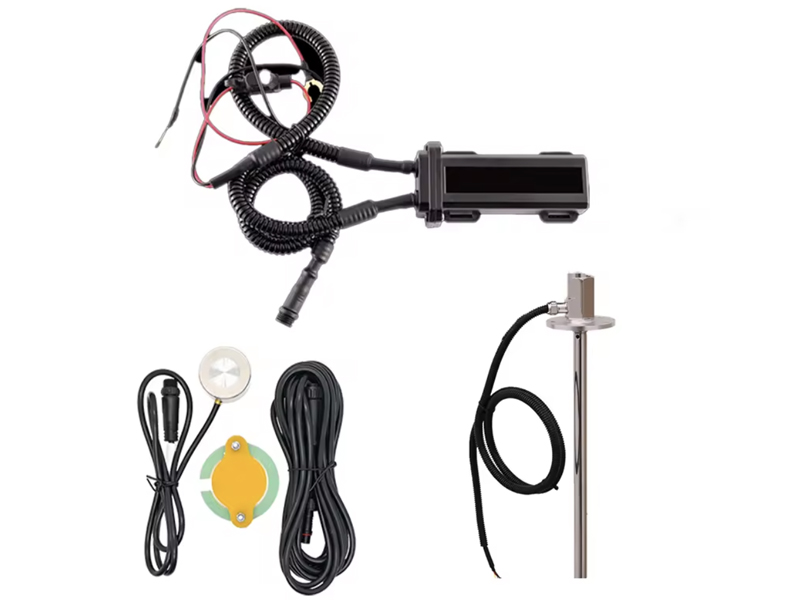

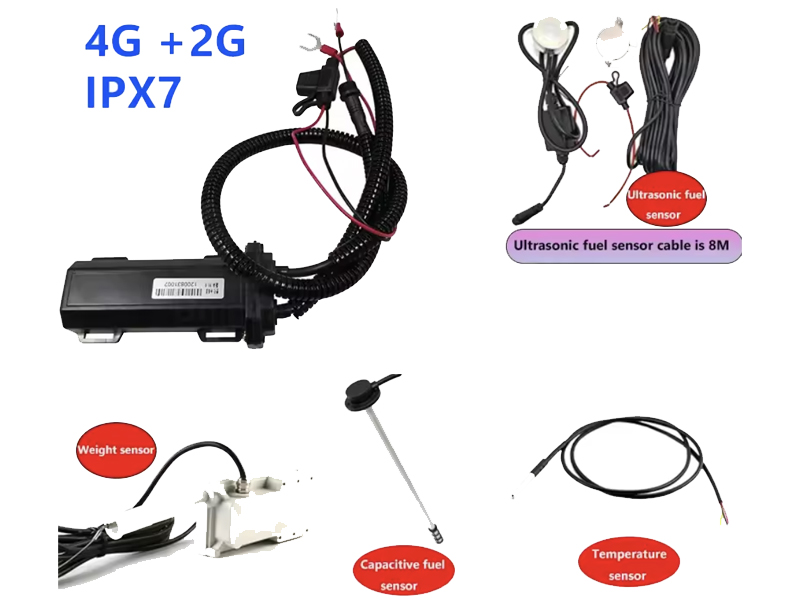

5 RS485 interface for ultrasonic fuel sensor or temperature sensor or weight sensor
6 Built-in Backup Battery
7 Real-time Tracking by Web and APP
8 FOTA
9 Dual core CPU

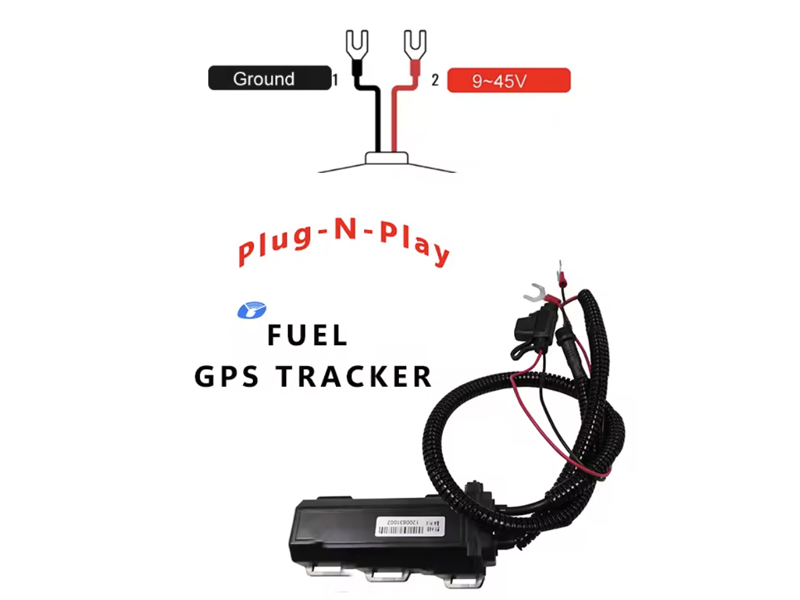

10 9V to 45V DC power supply
11 IP68 Water proof
Software Features:
1 Real time tracking by Web and APP
2 Geo-fence
3 History report and Playback
4 Fuel consumption/ leak / adding report (Support at most 5 RS232 connection sensors)
5 Temperature monitoring (Support at most 4 channel temperature sensors)
6 Weight sensor (0 to 100T. Above 100T need customization)
7 Location Report
8 Mileage Overview and Mileage Month report
9 Parking report
10 Ignition Status report
11 Rotation sensor report
12 Device Online/Offline report Daily and Monthly
13 Engine idle report
14 Sub user management
15 Insurance records management
|
Items |
Specifications |
|
Model |
UM778 |
|
Internet |
2G GSM 850/900/1800/1900Mhz |
|
Communication Protocol |
TCP/IP |
|
GNSS details |
GPS and BeiDou and GLONASS |
|
GNSS antenna |
25*25*2 mm Built in. |
|
Memory |
32mb + 32mb +128KB |
|
Switch |
On/Off |
|
SIM card |
Micro-SIM |
|
Signal light |
Blue for GPS, Green for GSM, Red for power |
|
Battery |
200mAh 3.7V Li-polymer Industry battery |
|
Working voltage |
9-45V DC / 24mAh (12VDVC) / 12mA (24VDVC) |
|
Interface |
5V output for alarm speaker control |
|
Working temperature |
-20 °C to 70 °C |
|
Working humidity |
5 -95% RH |
|
AGPS |
Support |
|
Size |
96* 43* 20 mm |
|
Weight |
110 g |
