Brand:Elites
Model no:ET-GS20
Product origin:China
Delivery time:2weeks-4 weeks
Supply capacity:Mass production
Main specification:

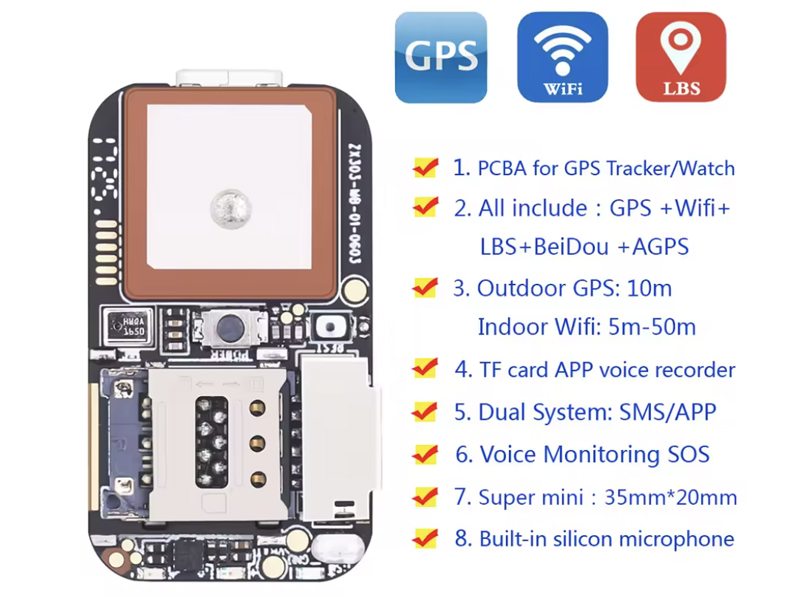

| Function | Realtime GPS/AGPS/LBS/Wifi Positioning, SOS, Call Family Numbers, Geo Fence Alarm Reminder, historical track, Alarm Clock, Class Mode, Power Save |
| CPU | 2503D,Assisted Chip: 3333 + 5931 |
| ROM | 32MB |
| RFPA | 6625E |

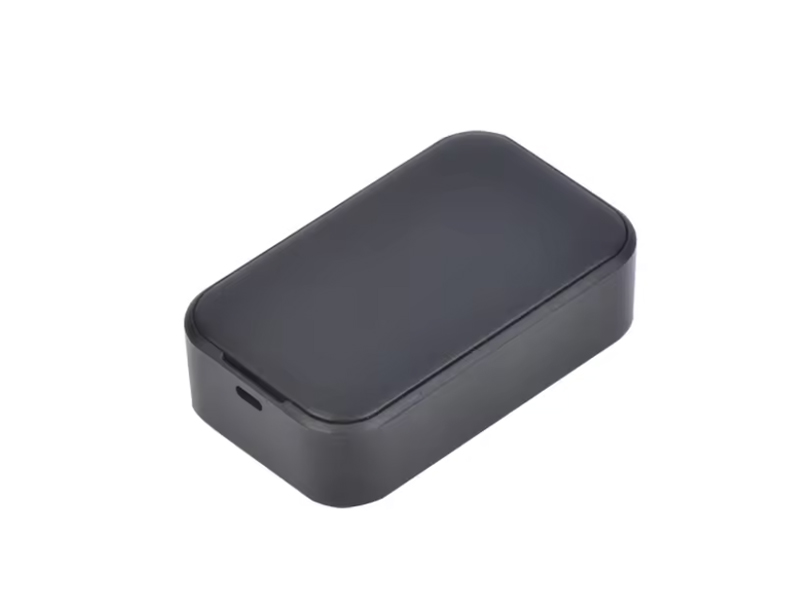

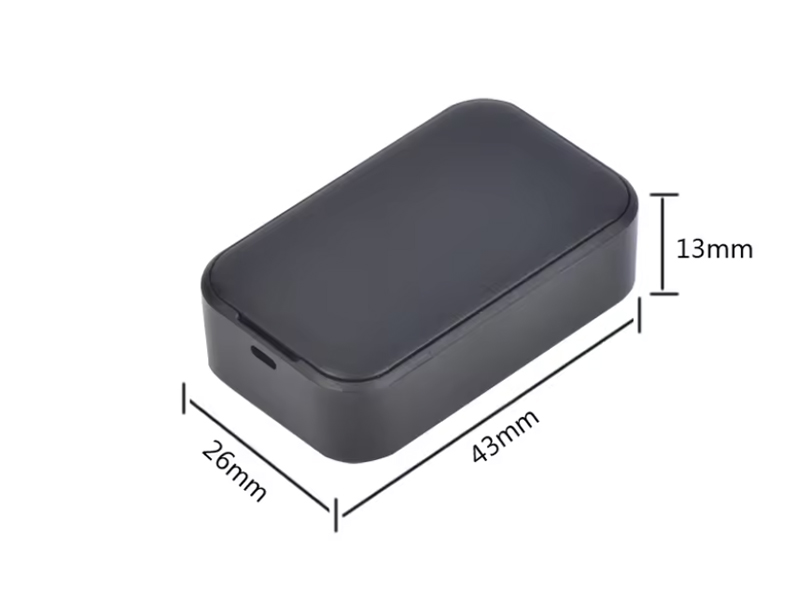

| Size | 43.1*26.1*13.2mm |
| Working Temperature | -20℃ - +70℃ |
| Network | GSM850/900/1800/1900MHz, working with GPRS 12 |
| GSM Antenna | PIFA Antenna |

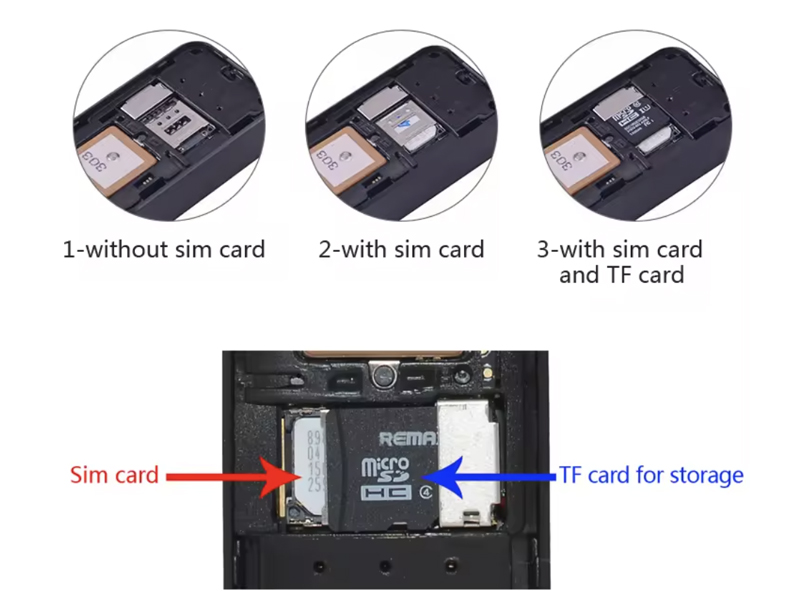

| SIM slot | Support NANO sim card |
| TF Slot | Support TF card up to 32GB |

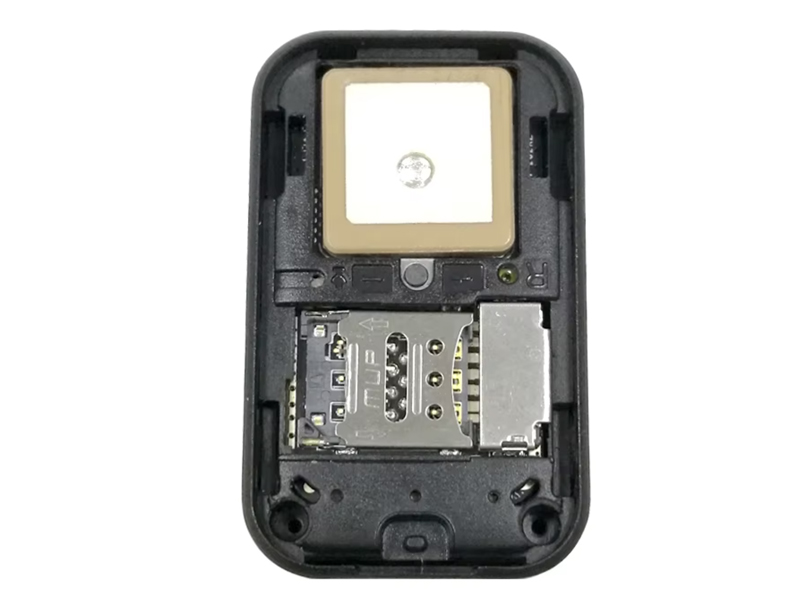

| GPS Antenna | 15X15 High performance ceramic antenna |
| GPS Positioning Accuracy | Within 10Metres |
| GPS Motion Accuracy | 0.1metre/second |
| GPS Positioning Time | Cold Boot-38s(Open field), Warm Boot2s(Open field),The specific time is affected by the environment |
| WIFI Positioning Accuracy | Within 50Metres |
| GSM Positioning Accuracy | 50-200Metres (Depending on the network) |
| Battery | Rechargeable 5V 3.7V 400MAh Li-polymer battery(optional different capacity batteries upon different struction design) |
| Charging port | Android Micro-USB port |
| Charging Current: | DC 5V/0.5A-1A(depend on your battery capacity) |

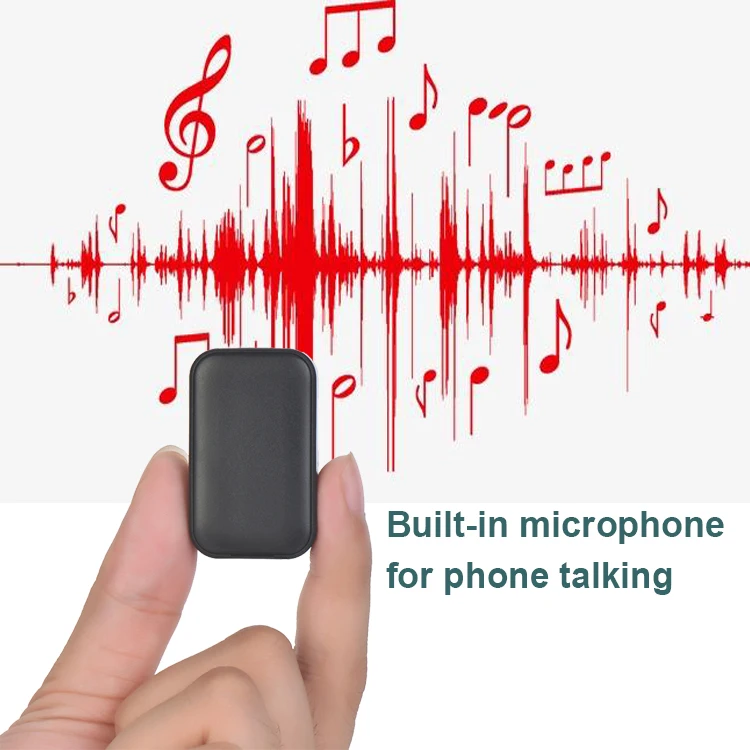

| MIC | Built-in High-Definition Silicon microphone for SOS |
| Horn | 0916 AAC |
| Sensor | Build-in 3D G-sensor |
Attention:
1: This model can only work with 2G GSM network(GSM 850/900/1800/1900,support Nano sim card), make sure the GPRS network is available,please confirm your network with your local telecom operators.
2: Before your large scale quantity orders, we kindly suggest testing our samples in advance.

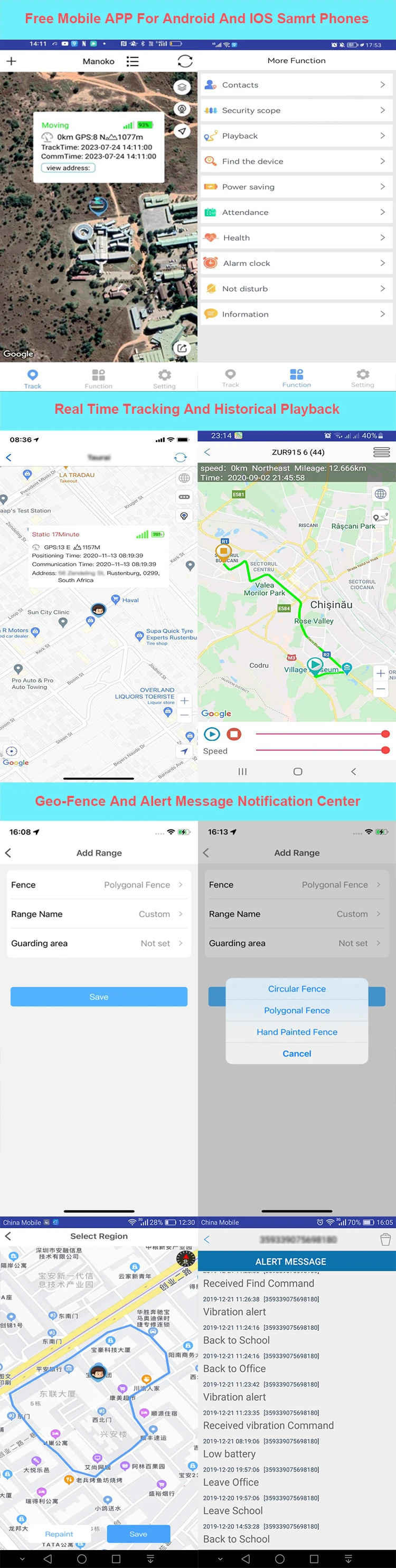

3: We offer free apps for our users for all our GPS tracker products.
4: For your own server, we are able to help you to transfer the communication protocol.
5: We are able to offer any necessary firmware & software technical assistance
