Product SPECIFICATION:
Model	GS100
Network frequency	4G

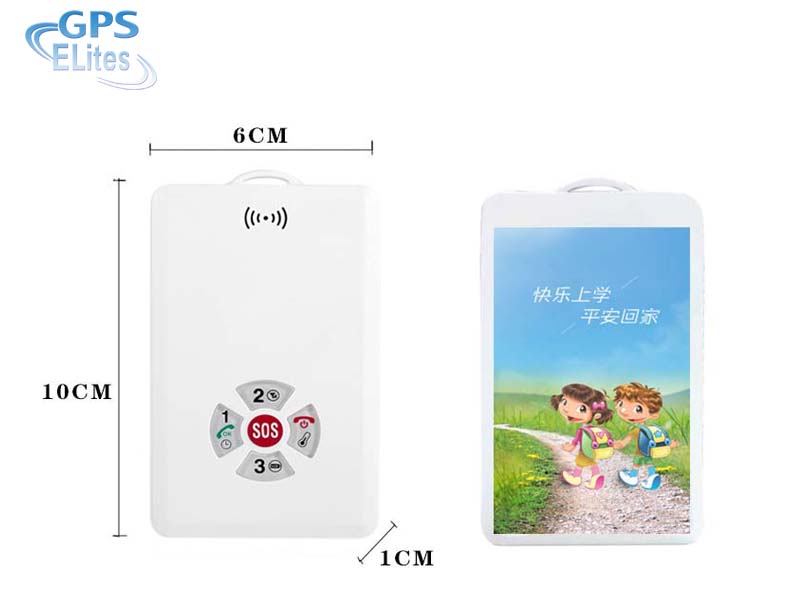

Size	100x60x12.5mm
Battery	2200mAh
Work voltage	3.7V
Material	PC+ABS
Positioning	Beidou+GPS+WIFI+LBS
Frequency	LTE-TDD: B34/B38/B39/B40/B41LTE-FDD:B1/B3/B5/B8
Function	Real-time tracking                         History trace playback One key push-to-talk                     No distance limitation SOS alarm                                     Dual-way phone calls Working punch-in & off                Push-to-Talk use data Talk to multiple people at the same time Broadcast speaker                           Set family numbers

Content	Specs.
Dim.	100*60*10mm
Network	LTE/GSM/GPRS
Frequency(4G+2G)	LTE-FDD B1/B3/B5/B8/B34/B38/B39/B40/B41
Module & Chipset	SIMCom LTE Cat 1 Module
GPS channel	66
Tracking sensitivity	-165dBm
Location accuracy	<5 meters CEP
Time To First Fix(open sky)	Cold status <35s Hot status <1s
Charging voltage	5VDC
GPRS Protocol	Class12, TCP/IP
Operating temp.	-20°C to +70°C
Back up battery	1200mAh /3.7V Li-Polymer battery
Standby & Working consumption	3mA~80mA
GSM / GPS antenna	Built-in
G-Sensor	Support
Memory storage	Support
Configuration Mode	PC – USB/GPRS /SMS
OTA	Support

Production Features

* Positioning and Tracking: Through the on-line Platform or the APP to locates at times, and get the working status.
* Power cut-off Alert: When the device removed from car battery, the unit will send the power cut-off alert to authorized
numbers.
* Overspeed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is overspeed, the unit will send the overspeed alert to authorized numbers.
* Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to
authorized numbers when it breaches the district.
* Resume the unit: send SMS to resume the default of unit.
* Making Call to Family numbers

* Press SOS button to trigger the emergency alarm to APP and server in urgent case.

* Press SOS button to trigger the emergency alarm to APP and server in urgent case.
