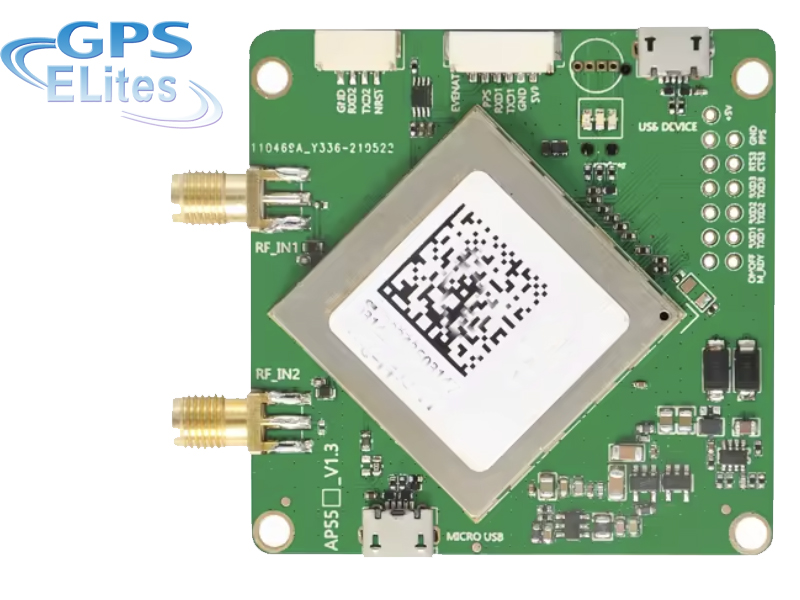

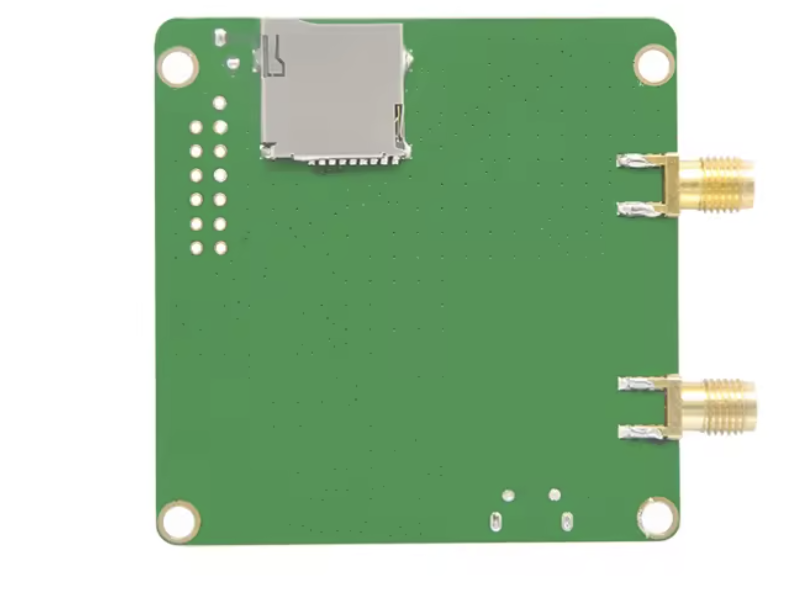

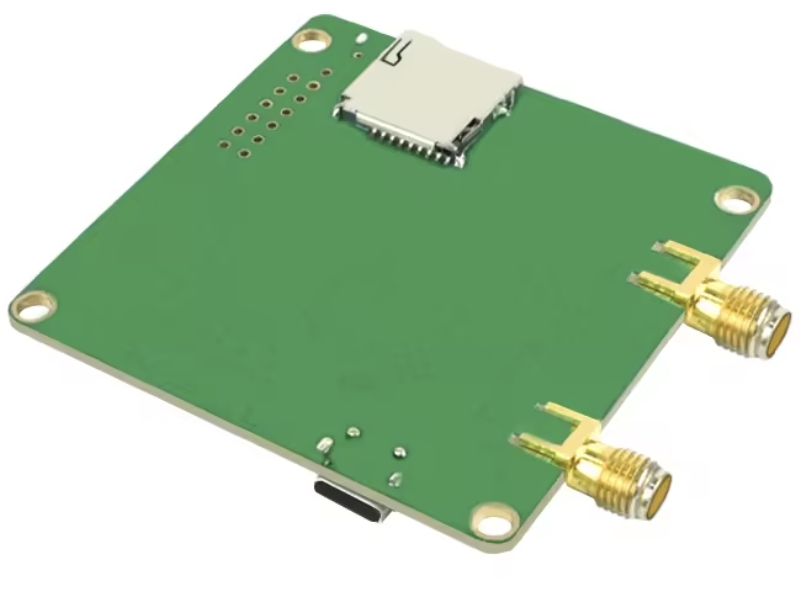

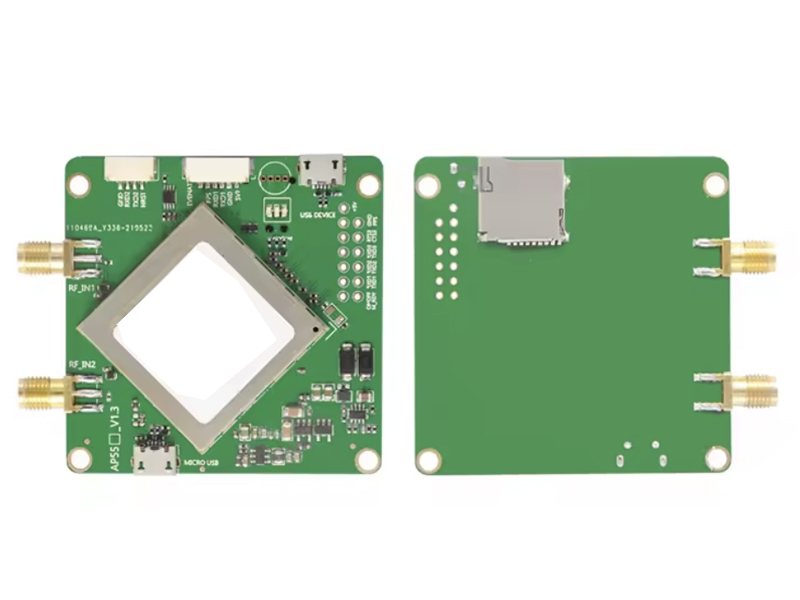

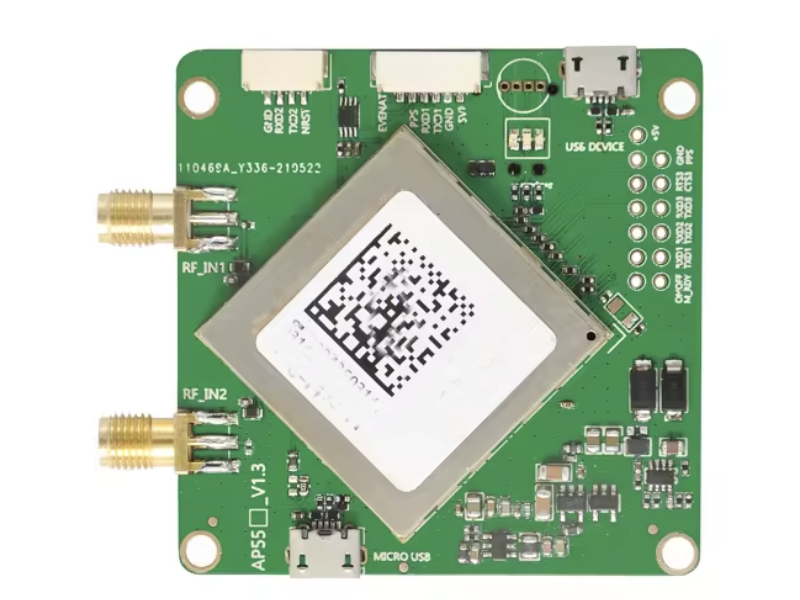

High-Precision Dual-Antenna GPS GNSS RTK Board Module for UAV Mapping Agriculture Autopilot Robotics ET-AP55
Brand:Elites
Model no:ET-AP55
Product origin:China
Delivery time:2weeks-4 weeks
The AP55 is a high-performance multi-band GNSS receiver supporting all global constellations and satellite signals
The AP55 is a high-performance multi-band GNSS receiver supporting all global constellations and satellite signals. Designed for UAVs, robotics, and autonomous systems, it features AIM+ anti-jamming technology for reliable operation in challenging environments. With versatile data interfaces and robust signal tracking, it is widely adopted in mass-market GNSS applications.
Product Parameters
|
Satellite
|
GPS:L1C/A, L1C, L1PY, L2C, L2P, L5 BDS:B1I, B1C, B2a, B2I, B3I
GLONASS:L1CA, L2CA, L2P, L3 CDMA Navic:L5 Galileo:E1, E5a, E5b, E5 AltBoc, E6 QZSS:L1C/A, L1C, L2C, L5, L6 SBAS:EGNOS, WAAS, GAGAN, MSAS, SDCM (L1, L5) |
|
|
Sensitivity (C/N0 threshold)
|
Tracking & Navigation
|
20 dB-Hz
|
|
Acquisition
|
33 dB-Hz
|
|
|
Positioning time test
|
Cold Start
|
45s
|
|
Hot Start
|
≤20s
|
|
|
Restart
|
≤1s
|
|
|
Horizontal position accuracy
|
Horizontal
|
0.6cm+0.5ppm
|
|
Vertical
|
1cm+1ppm
|
|
|
Speed accuracy
|
0.03m/s
|
|
|
Timing accuracy
|
XPPS output
|
5ns
|
|
limiting condition
|
Acceleration limit
|
≤ 4 g
|
|
Height limit
|
18,000m
|
|
|
Speed limit
|
515m/s
|
|
|
Refresh frequency
|
15200-4M bps, (Default 115200 bps)
|
|
|
Update frequency of data
|
Positioning
|
100Hz
|
|
Observed value
|
100Hz
|
|
