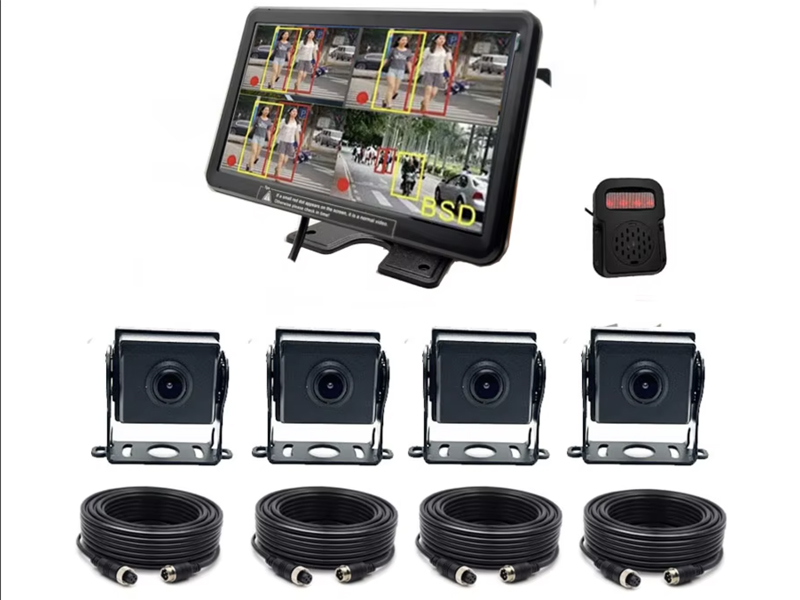

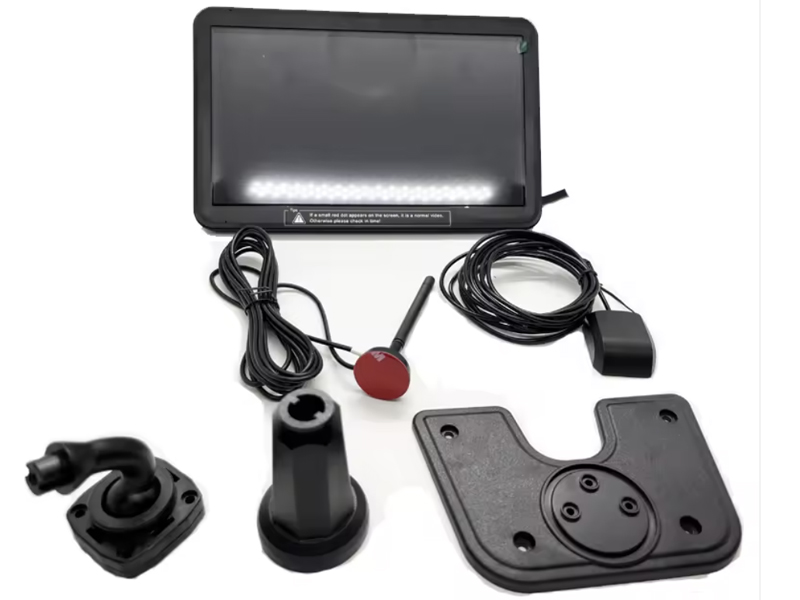

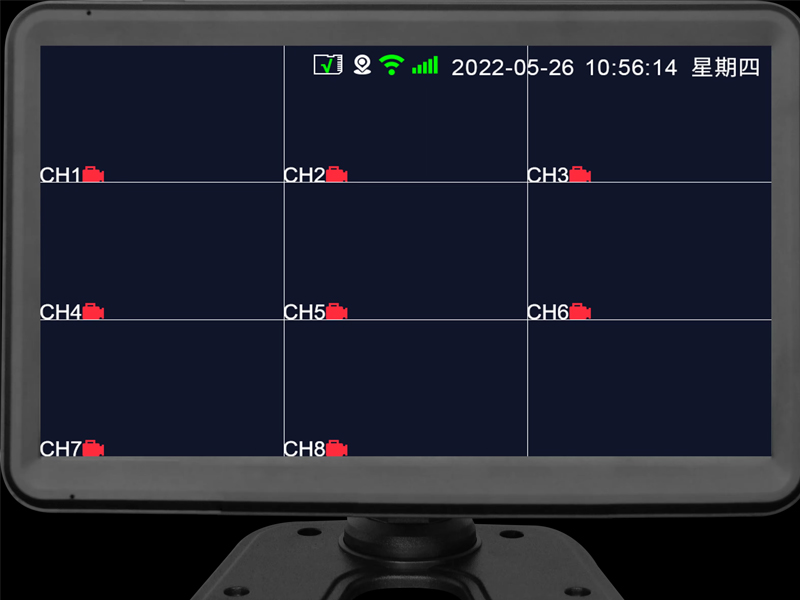

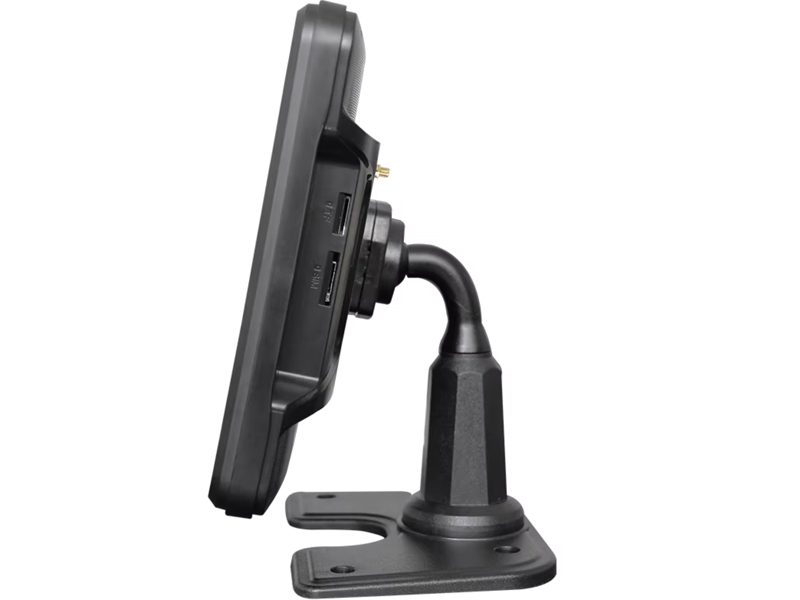

Multi-Channels HD 4G Mobile DVR and 10.1 Inch Car Monitor Integrated DVR for Car Reversing and Recording (4ch/6ch/8ch Optional) MT602

Brand:Elites

Model no:ET-MT602

Product origin:China

Delivery time:2weeks-4 weeks

Supply capacity:Mass production

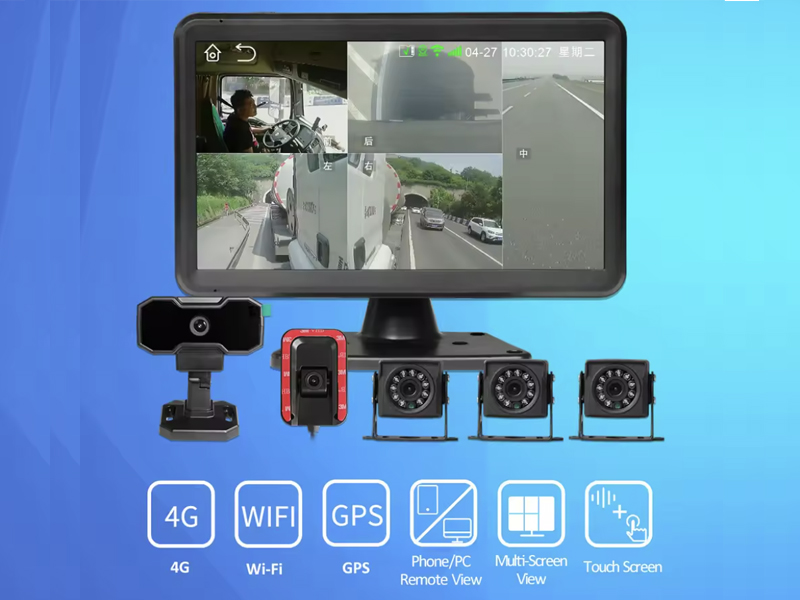

Model MT601 is 10.1 inch screen with 4G GPS DVR, ADAS DSM BSD AHD All in one Monitor for Bus, Truck Fleet Management (4ch/5ch/6ch optional)
Main Features

Support 1-5 channels of AHD million high-definition / analog standard definition video and audio input,

Support 5-channel 1080P/720P HD real-time local recording,

Support 5-channel high-definition remote video transmission,
Image automatically recognizes camera resolution,
Support one-key photo function,

Power Supply:
Professional vehicle power supply design 8-36V DC wide voltage input design,
Various protection circuits such as undervoltage, short circuit, reverse connection, etc. suitable for various models,
Support intelligent power management identification, automatic shutdown when low power, low power consumption after flameout;

Data Storage:
Adopt special file management mechanism to encrypt data to effectively protect data security,
Proprietary TF card bad track detection technology not only ensures the continuity of video recording, but also prolongs the service life of TF card,
Built-in super capacitor to avoid data loss due to abnormal power failure,
Support TF dual card storage, the maximum capacity of a single card supports 512G,

Extensions:

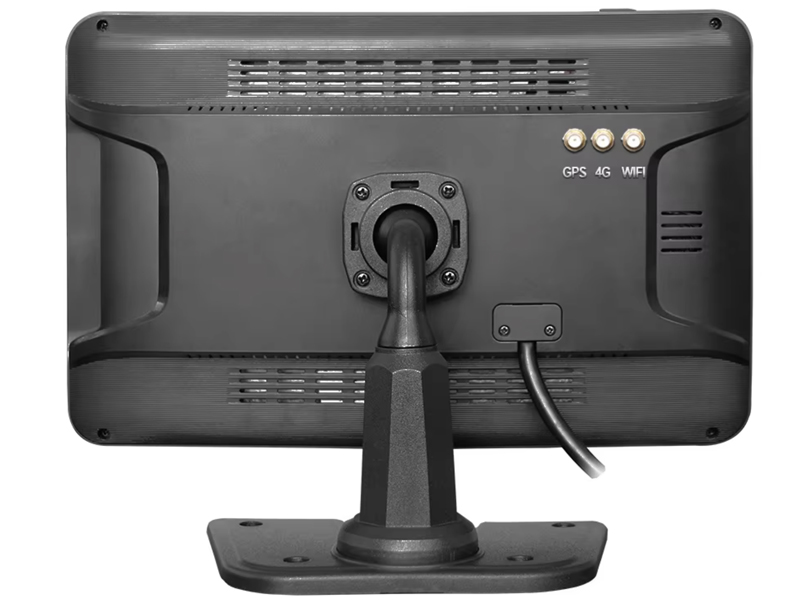

Support GPS/BD positioning, high sensitivity, fast positioning;
Built-in 3G/4G module, support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE;
Built-in WIFI module;

Algorithm:
Support extended RJ45 interface, built-in ADAS, BSD, DSM algorithm (optional),

Peripherals:
Supports docking of peripherals such as temperature control, passenger flow, oil sense, forward and reverse rotation, and load.

Specifications

Product Specifications:

Project

Device parameters

Performance



Show

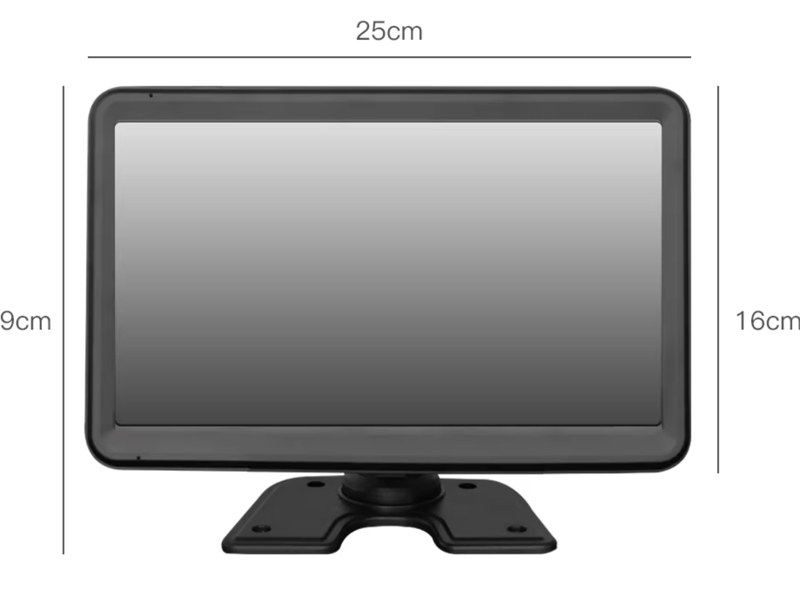

Display Size

10.1 inches

Resolution

1024*600

Brightness

600 Brightness IPS



System

Main Processor

ARM Cortex A7

Operating System

Embedded Linux operating system



Operating Language

Chinese/English/Traditional Chinese /Russian/Japanese/ Italian/Spanish/French

Operation Interface

Graphical menu operation interface, support touch and voice control operation









Audio and Video

Video Format

PAL/NTSC

compression standard

H.265

Image Resolution

1080P/720P/960H

Video Quality

Levels 1 to 6 are available

Combination

Various combinations

Decoding capability

5ch 1080P/720P real-time

Screen Display

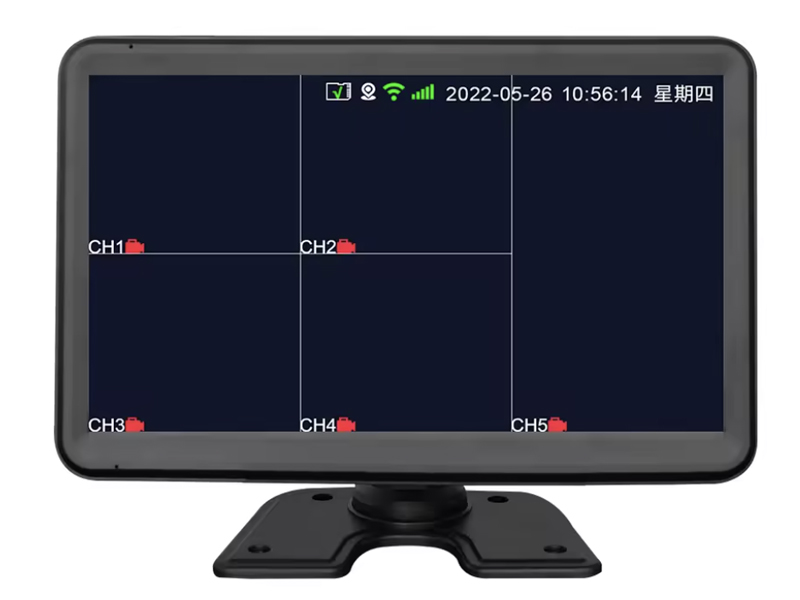

Support 1, 4, 5 screen display

Audio compression

G.726

Recording method

Synchronized recording of sound and video







Recording and Playback

Video recording

Manual, alarm

Video bit rate

Full frame 4096Mbps

audio bit rate

8KB/s

storage medium

TF card storage

Video query

Search by channel and recording type

local playback

Playback by file

Software

Upgrade

Upgrade mode

Manual upgrade, remote upgrade







Interface

audio input

1 channel

video input

5 channel

Alarm input

4-channel alarm input by default

Alarm Output

1 channel alarm output

Ignition Input

1 channel ACC signal

Serial Port

1 485 interface (can be customized)



Extensions

GPS/BD

GPS or BD, GLONASS

3G/4G

Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE

WIFI

Support 2.4G WIFI









Other

Power Input

DC:8V~36V



Power consumption

Standby 3mA

Maximum power consumption 18W

@12V 1.5A @24V 0.75A

Operating temperature

-20~70℃

Compressed storage capacity

1080P  1.2G/hour/channel

720P   0.8G/hour/channel

960H   0.6G/hour/channel
