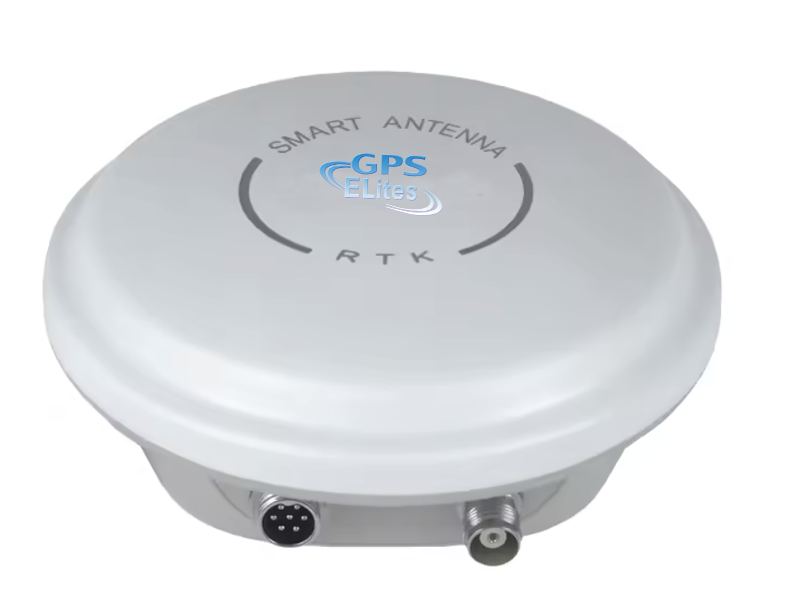

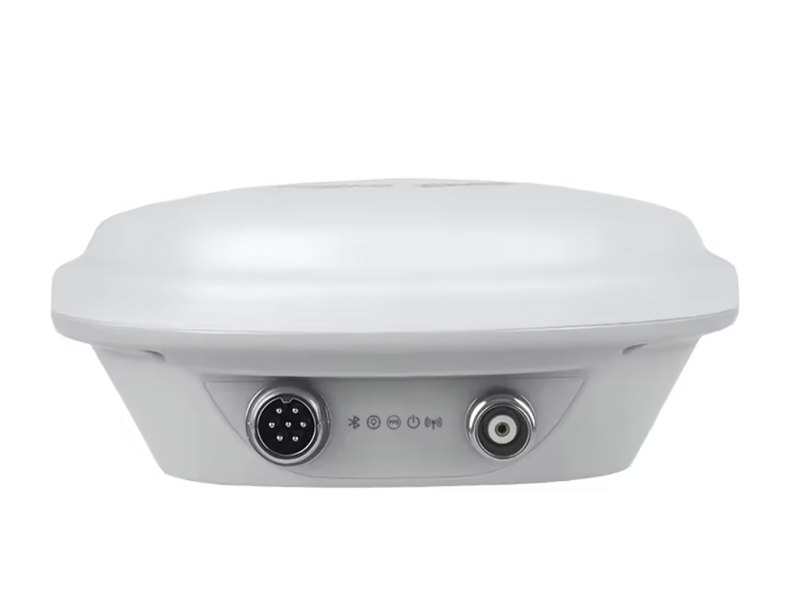

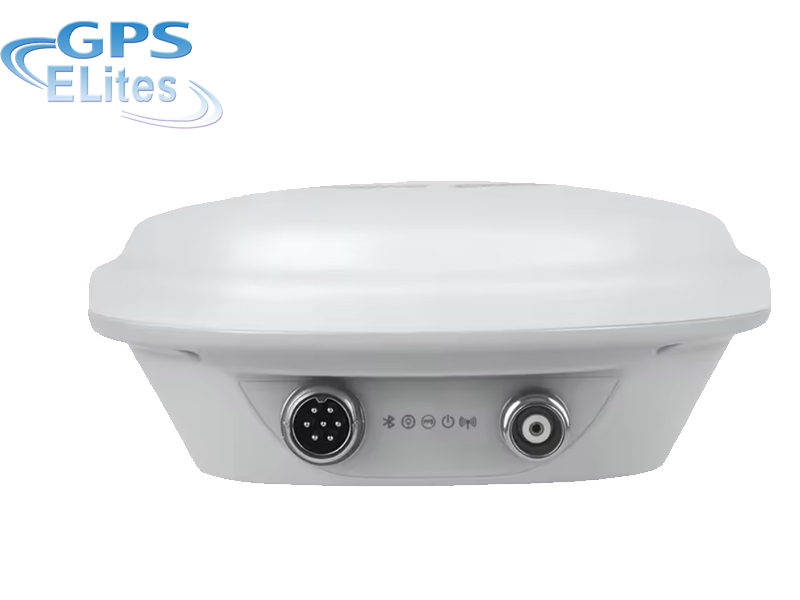

High Precision Multi-Constellation GNSS Antenna G27
Brand:Elites
Model no:ET-G27
Product origin:China
Delivery time:2weeks-4 weeks
G27 is a multi-band, multi-constellation positioning and heading receiver with rich data interfaces
G27 is a multi-band, multi-constellation positioning and heading receiver with rich data interfaces. It offers low latency and predictable delay for stable, precise control. Supporting current and future GNSS signals and compatible with mainstream open-source autopilots, it is ideal for UAVs, autonomous robots, precision control, and autonomous driving applications.
Product Parameters
|
Parameters
|
Description
|
|
Receivable Satellites
|
GPS: L1C/A, L1C, L2C, L2PY, L5
BDS: B1I, B1C, B2a, B2I, B2b, B3I
GLONASS: L1CA, L2CA, L2P, L3 CDMA
Galileo: E1, E5a, E5b, E6
QZSS: L1C/A, L1C/B, L2C, L5, L6 |
|
Tracking Performance (C/N0 threshold)
|
Tracking and Navigation Sensitvity: 20 dB-Hz
Acquisition Sensitivity: 30 dB-Hz
|
|
Time To First Fix
|
Cold Start: < 35s
Warm Start: < 10s
Reacquisition: 1s
|
|
RTK Status³
|
Horizontal Accuracy: 0.6cm+0.5ppm
Vertical Accuracy: 1cm+1ppm
Initialization Time: 7s
|
|
Timing Accuracy
|
xPPS: 1.4ns
Event accuracy: < 3ns
|
|
Latency
|
99.9%: < 10ms
|
|
Velocity
|
0.03m/s
|
|
Baud Rate
|
4800- 4M bps ( default 115200bps )
|
|
Maximum Data Update Rate
|
20 Hz
|
